| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
624 pcs
|
624 pcs | On Request | 1 | 10 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

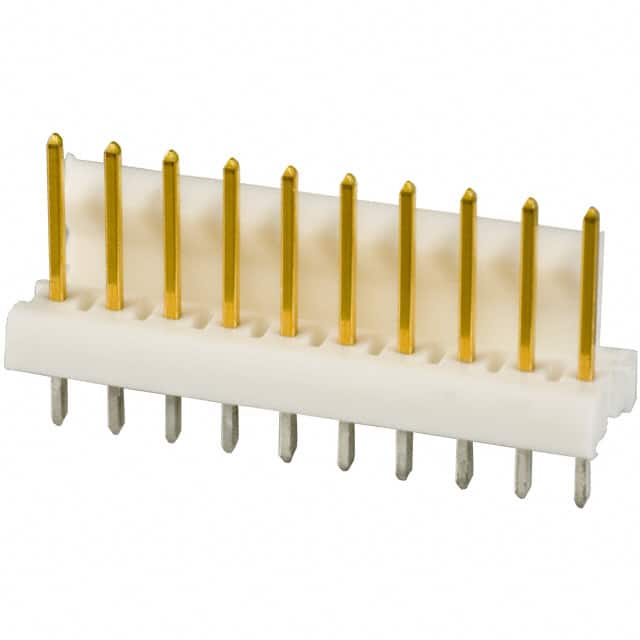

The TE Connectivity 1-641215-0 is a 10-position single row male pin header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination. The header is shrouded with a single wall and includes a friction lock for secure mating.
The contacts are made of copper alloy with a tin finish of 30.0µin (0.76µm), providing reliable electrical performance. The insulation is natural thermoplastic with a flammability rating of UL94 V-0. The operating temperature range is -55°C to 105°C.
This connector is suitable for various applications requiring a durable and secure connection. The 10 positions are fully loaded in a single row configuration. The overall contact length is 13.59mm (0.535"), and the insulation height is 7.75mm (0.305").
| Qty | Low | High |
|---|---|---|
| 1+ | $4.07 | $4.07 |
| 10+ | $3.71 | $3.71 |
| 25+ | $3.51 | $3.51 |
| 100+ | $3.26 | $3.26 |
| 250+ | $2.86 | $2.86 |
| 500+ | $2.77 | $2.77 |
| 1,000+ | $2.38 | $2.38 |
| 2,500+ | $2.23 | $2.23 |
| 5,000+ | $2.12 | $2.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100")
Varies by wire gauge.
250VAC.
Through hole.
-55°C to 105°C.
Tin with 30.0µin (0.76µm) thickness.
