| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

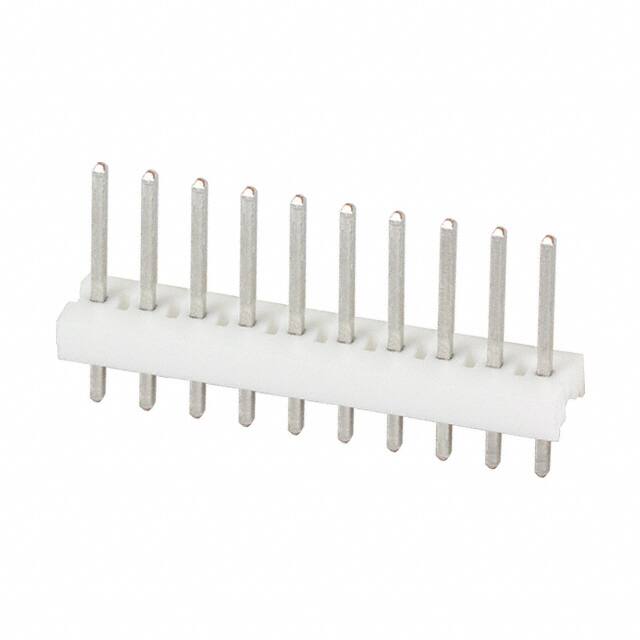

This is a 10-position, single-row header connector from TE Connectivity. It features male pin contacts with a square shape and tin finish. The connector is unshrouded and designed for board-to-cable/wire applications.
Key specifications include a pitch of 2.54mm, overall contact length of 13.59mm, and insulation height of 2.54mm. The insulation material is thermoplastic with a natural color and UL94 V-0 flammability rating. The operating temperature range is -55°C to 105°C.
The header is through-hole mounted with solder termination. It is rated for 250VAC voltage, and current rating varies by wire gauge. The contact material is copper alloy.
10 positions.
2.54 mm.
250 VAC.
Varies by wire gauge.
Through hole.
-55°C to 105°C.
Tin.
