| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

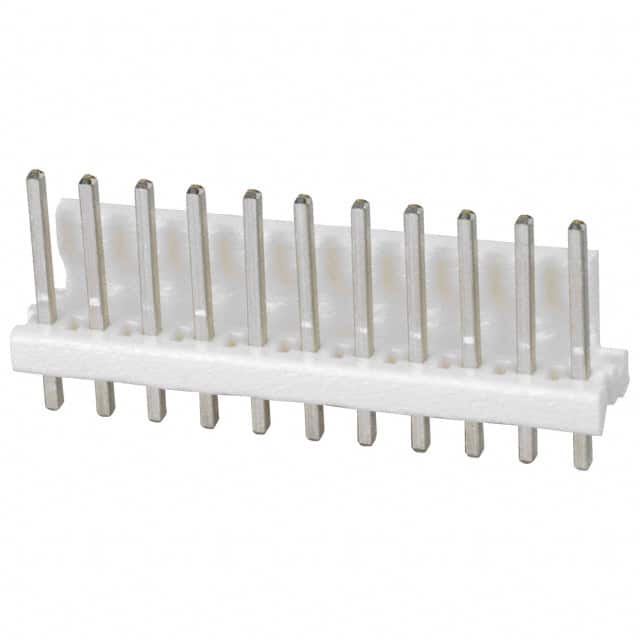

The TE Connectivity 1-640445-1 is a 11 position single row straight through hole header part of the universal MATE-N-LOK family. It features a 3.96mm pitch with all positions loaded and square male pin contacts made of copper alloy with tin plating. The shrouded design with one wall provides polarization and protection to the contacts.
The header has a friction lock fastening type for secure mating and is rated for 600VAC operation. The insulation is natural colored thermoplastic glass filled material with a flammability rating of UL94 V-0. Operating temperature range is -55°C to 105°C.
This component is designed for board to cable/wire connections and is mounted via through hole solder termination. The contact length is 10.16mm with overall contact length of 16.51mm.
The pitch is 3.96mm.
It has 11 positions in a single row.
The voltage rating is 600VAC.
Through hole mounting with solder termination.
RoHS3 compliant status is unverified.
