| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,886 pcs
|
7886 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

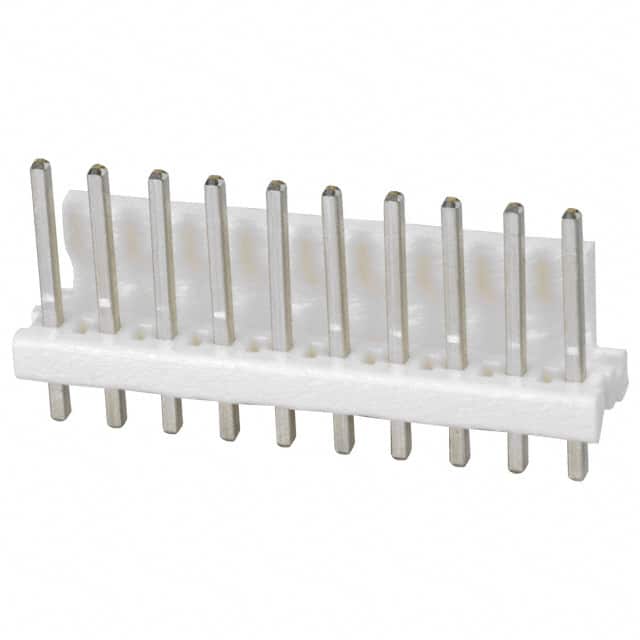

The TE Connectivity 1-640445-0 is a 10-position, single-row, 3.96mm pitch shrouded header connector designed for board-to-cable/wire applications. It features a friction lock for secure mating and through-hole mounting with solder termination.
The header has a single row of 10 male pin contacts made of copper alloy with tin plating. The square contact shape ensures reliable connections. The insulation is made of glass-filled thermoplastic in natural color, with a flammability rating of UL94 V-0. The insulation height is 10.80mm, contact length is 10.16mm, and overall contact length is 16.51mm.
The connector is rated for 600VAC operation, with current rating varying by wire gauge. It operates over a temperature range of -55°C to 105°C. The part is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
10 positions.
3.96mm (0.156 inches).
The current rating varies by wire gauge; it is not a fixed value.
600VAC.
Through hole with solder termination.
-55°C to 105°C.
Friction lock.
