| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
404 pcs
|
404 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

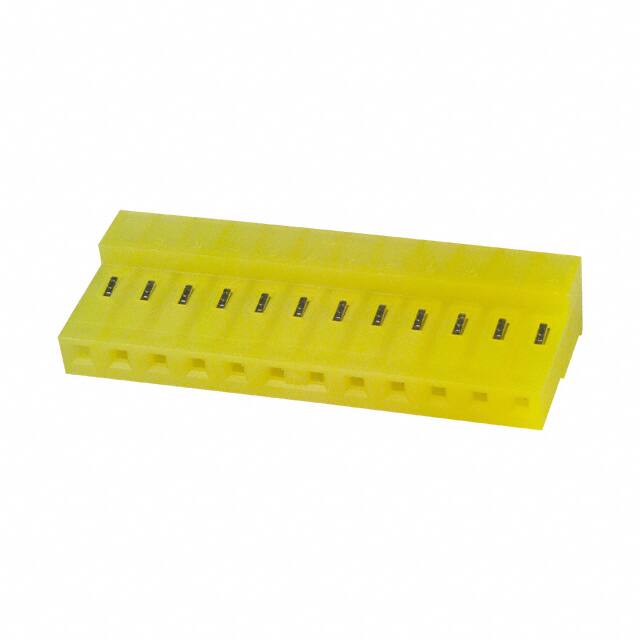

The TE Connectivity 1-640432-2 is a 12-position IDC (Insulation Displacement Connector) receptacle designed for free hanging (in-line) mounting. It accepts 20 AWG discrete or ribbon cable and features a 3.96mm (0.156") pitch. The connector uses female socket contacts with a tin-lead finish (80.0µin / 2.03µm) and is housed in a yellow closed-end body.
This connector is part of TE's rectangular connector family and is suitable for wire-to-wire applications where a reliable, mass-termination connection is needed. The IDC termination style allows for quick assembly without stripping or soldering wires.
The closed end feature provides protection against accidental shorting or contamination. The free hanging design offers flexibility in cable assembly routing.
| Qty | Low | High |
|---|---|---|
| 500+ | $0.58 | $0.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
3.96mm (0.156").
20 AWG.
