| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | 2013 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

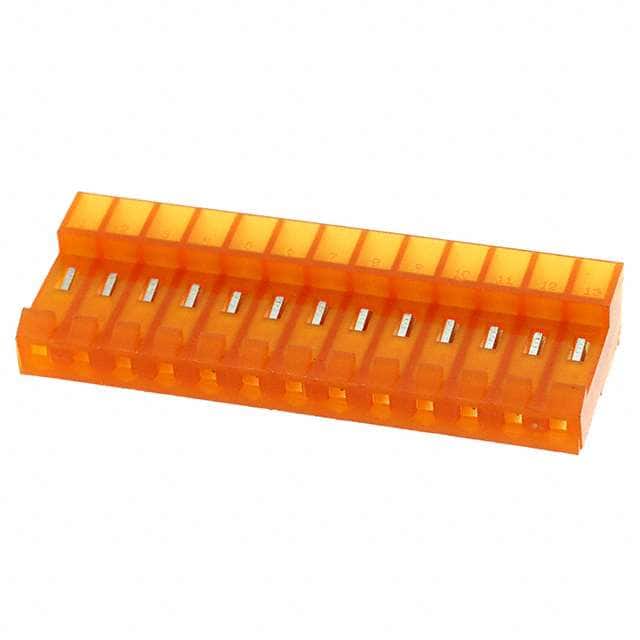

The TE Connectivity 1-640426-3 is a 13-position single row receptacle connector designed for discrete wire applications. It uses IDC termination for 18 AWG wire, eliminating the need for stripping. The contacts are tin plated with a thickness of 80µin (2.03µm), providing reliable conductivity. The connector features a locking ramp fastening type for secure mating and is free hanging (in-line) mounted. The housing is orange and closed-end, preventing wire shorting. The pitch is 3.96mm (0.156"). This connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though compliance data is unverified. Ideal for wire-to-board or wire-to-wire connections in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 20,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
13 positions in a single row.
3.96mm (0.156 inches).
Free hanging (in-line).
18 AWG discrete wire.
IDC (Insulation Displacement Contact).
Tin with a thickness of 80µin (2.03µm).
Locking ramp.
