| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

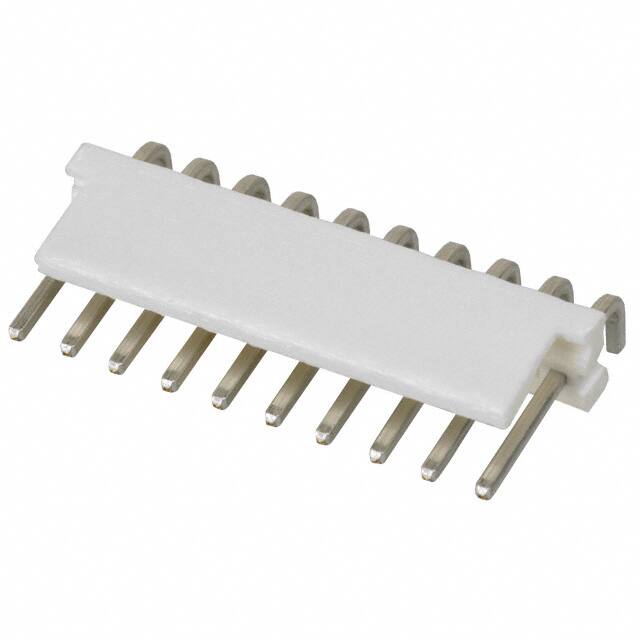

The TE Connectivity 1-640389-0 is a 10-position, single-row header designed for board-to-cable/wire connections. It features a 3.96mm (0.156") pitch and a right-angle through-hole mounting style with solder termination.
The header is shrouded with a single wall and includes a friction lock for secure mating. It uses male square pins with a tin finish, made from copper alloy, and a natural glass-filled thermoplastic insulator rated UL94 V-0. The operating temperature range is -55°C to 105°C, with a voltage rating of 600VAC.
It has 10 positions arranged in a single row.
The pitch is 3.96mm (0.156 inches).
It is rated for 600VAC.
It is a through-hole, right angle mount header.
