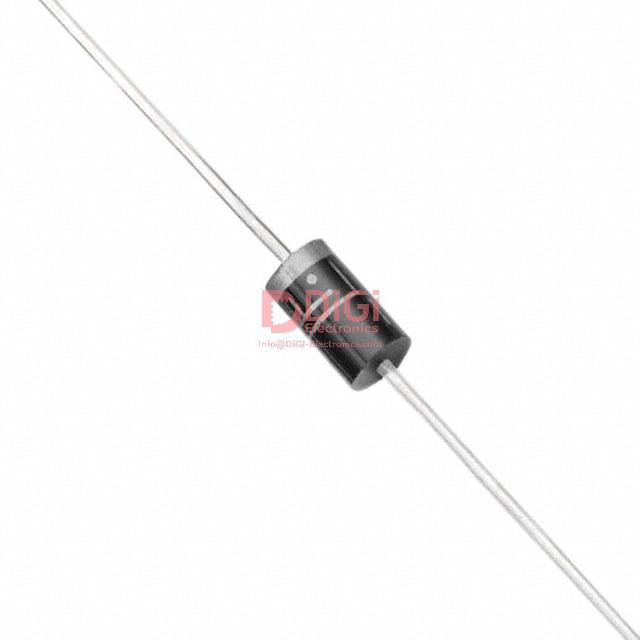

The Littelfuse 1.5KE27CA is a bidirectional TVS Diode designed for general purpose applications. It offers a reverse standoff voltage of 23.1V and a breakdown voltage of 25.7V. The clamping voltage is rated at 37.5V with a peak pulse current of 40.5A (10/1000µs), and it can handle a peak pulse power of 1500W.
This component is housed in a through-hole DO-201AA/DO-27 axial package. It operates within a temperature range of -55°C to 175°C. The TVS diode is suitable for general purpose protection circuits.
Key electrical characteristics include a 1-channel bidirectional Zener type design. It is not intended for power line protection. The series is designated as 1.5KE, and the product status is active.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 23.1V.
The maximum clamping voltage is 37.5V at 40.5A.
The peak pulse current rating is 40.5A for a 10/1000µs waveform.
The peak pulse power is 1500W.
The 1.5KE27CA is in a DO-201AA, DO-27, Axial package.
The 1.5KE27CA is mounted using the through-hole method.
