| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | 1209 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

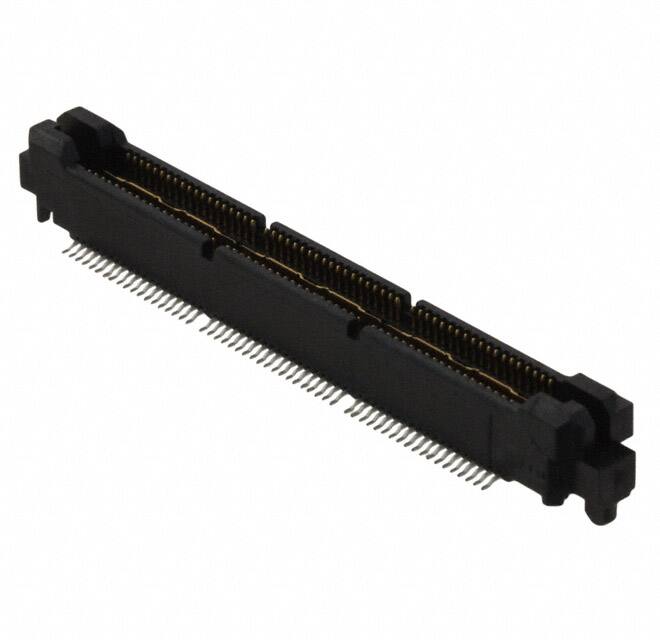

The TE Connectivity 1-5767007-0 is a board-to-board connector plug with outer shroud contacts. It has 114 positions arranged in 2 rows with a pitch of 0.64mm. The connector is surface mount and features gold contact finish with a thickness of 30.0µin (0.76µm).
The connector has a height above board of 6.38mm and supports mated stacking heights of 6.6mm and 15.62mm, making it suitable for mezzanine board-to-board applications. It includes a board guide and ground bus (plane) for alignment and grounding.
The contact finish is gold, ensuring reliable electrical connections. The connector is RoHS3 compliant and REACH unaffected, with a moisture sensitivity level of 1 (unlimited).
114 positions arranged in 2 rows.
0.64mm.
Surface mount.
Gold with 30.0µin thickness.
6.38mm.
6.6mm and 15.62mm.
Board guide and ground bus (plane).
