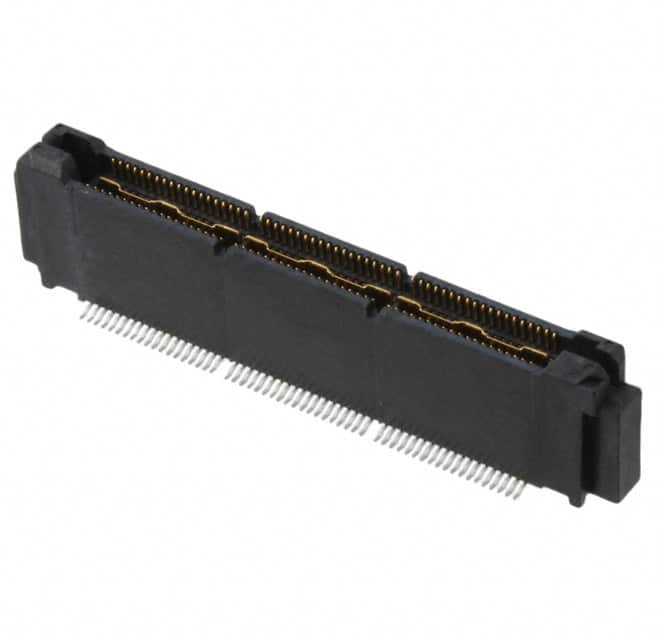

The TE Connectivity 1-5767005-0 is a precision board-to-board connector plug designed for high-density mezzanine stacking applications.
This connector features 114 outer shroud contacts arranged in 2 rows with a compact 0.64mm (0.025 inch) pitch, enabling tight PCB layouts. The surface mount mounting type supports automated assembly, while the gold contact finish (30.0µin / 0.76µm thickness) ensures reliable signal integrity over repeated mating cycles.
Key mechanical attributes include a board-to-board stacking height options of 12.57mm and 21.6mm, with a height above board of 0.484 inches (12.29mm). Integrated board guide and ground bus (plane) features assist alignment and provide grounding paths.
Plug, Outer Shroud Contacts.
114 positions arranged in 2 rows.
0.64mm (0.025").
Surface Mount (SMD).
