| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

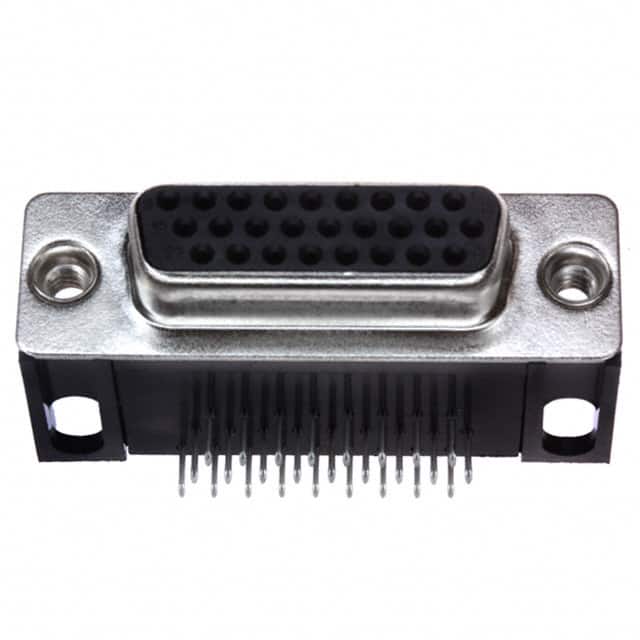

The TE Connectivity 1-5748481-9 is a D-Sub high density receptacle connector designed for reliable signal interconnections. It features 26 positions arranged in 3 rows, with female socket contacts that are gold plated to 30.0µin (0.76µm) for corrosion resistance and reliable mating cycles.
This connector uses a through hole, right angle mounting style with solder termination, making it suitable for PCB applications where space constraints require a right angle orientation. The shell is made of steel with nickel plating, providing durability and EMI shielding. The shell size is 2 (DA, A) high density, and the flange feature uses housing/shell (4-40) threads for secure mounting.
Rated for 2A current per contact, this connector is appropriate for signal-level applications. The insulator material has a UL94 V-0 flammability rating, ensuring compliance with safety standards. The contact type is signal, making it ideal for data and control signal transmission in industrial, telecommunications, and computing equipment.
It is a D-Sub high density receptacle with female sockets.
It has 26 positions arranged in 3 rows.
Through hole, right angle mounting with solder termination.
The current rating is 2A per contact.
Gold finish with a thickness of 30.0µin (0.76µm).
Steel shell with nickel plating.
UL94 V-0.
