| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
146 pcs
|
146 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

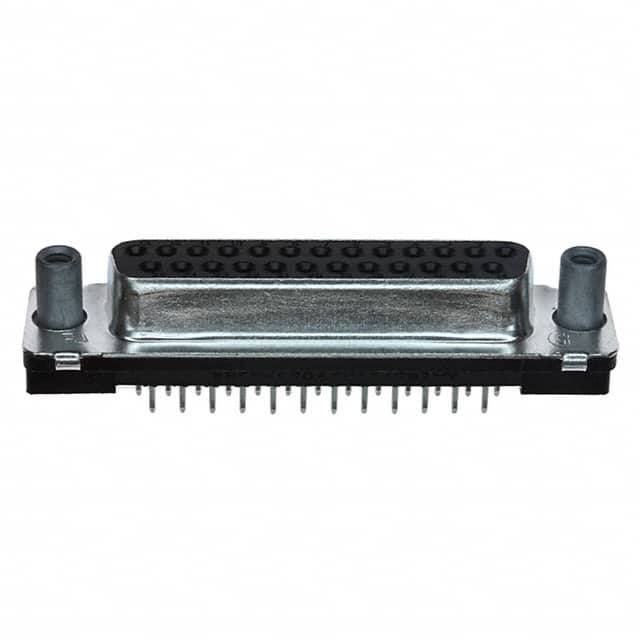

The TE Connectivity 1-5745967-4 is a D-Sub receptacle connector featuring 25 female socket contacts arranged in 2 rows. It is designed for through hole mounting with solder termination, making it suitable for permanent board-to-cable or panel-mount applications.
This connector uses signal contacts with a gold finish of 30.0 µin (0.76 µm) for reliable low-level signal transmission and corrosion resistance. The steel shell is tin plated, and the flange includes a mating side female screwlock (4-40) for secure panel mounting.
Rated for 6A continuous current, the connector is housed in a UL94 V-0 rated insulator material for flammability safety. The shell size is 3 (DB, B), which is the standard size for 25-position D-Sub connectors.
Receptacle, Female Sockets; D-Sub style.
25 positions arranged in 2 rows.
Through hole mounting with solder termination.
6 A per contact.
Gold finish, 30.0 µin (0.76 µm).
Steel, tin plated.
UL94 V-0.
