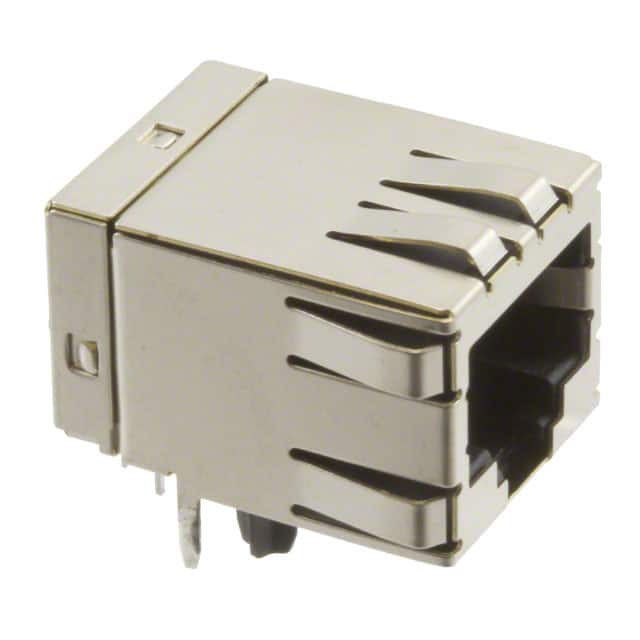

1-5406299-1 TE Connectivity 1-5406299-1 is a shielded modular jack with 8p8c (RJ45) configuration, through hole mounting, and right angle orientation.
Mfr Part #:

1-5406299-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-5406299-1 is a shielded modular jack with 8p8c (RJ45) configuration, through hole mounting, and right angle orientation.
✓ Total Stock: 4,000 pcs

1-5406299-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-5406299-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Tape & Reel
Termination
Termination Style
View Similar Products (0)

1-5406299-1 Description

Short technical summary and product information.

The TE Connectivity 1-5406299-1 is a modular connector jack designed for RJ45 Ethernet applications. It features 8 positions and 8 contacts (8p8c) in a single port, single row layout. The connector is mounted through hole and has a 90° right angle orientation with the tab direction facing down.



Shielding is provided with an EMI finger, and the contact material is phosphor bronze with a gold finish. The connector includes a board guide feature for alignment during assembly. It is rated for Cat5 performance and does not contain an LED indicator.



This connector is suitable for use in networking equipment, data communication devices, and other applications requiring a wired RJ45 connection. The through hole mounting provides robust mechanical attachment to the printed circuit board.

1-5406299-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: TE Connectivity 1-5406299-1 Modular Jack, Through Hole, 8p8c (RJ45), 90° Right Angle, Shielded
Subcategory: RJ45 Connector

1-5406299-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-5406299-1 Features

  • Shielded with EMI finger.
  • 8p8c (RJ45) connector configuration.
  • Through hole right angle mounting.
  • Gold plated phosphor bronze contacts.
  • Cat5 rated performance.

1-5406299-1 Applications

  • Ethernet networking equipment.
  • Data communication devices.
  • Industrial control interfaces.
  • Routers and switches.

1-5406299-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type of the 1-5406299-1?

Jack

How many positions does this modular jack have?

8p8c (RJ45, Ethernet)

What is the mounting type?

Through Hole

Is the connector shielded?

Yes, shielded with EMI finger

What is the orientation of the connector?

90° Angle (Right)

Does this part have an LED?

Does Not Contain LED

What is the contact finish?

Gold
