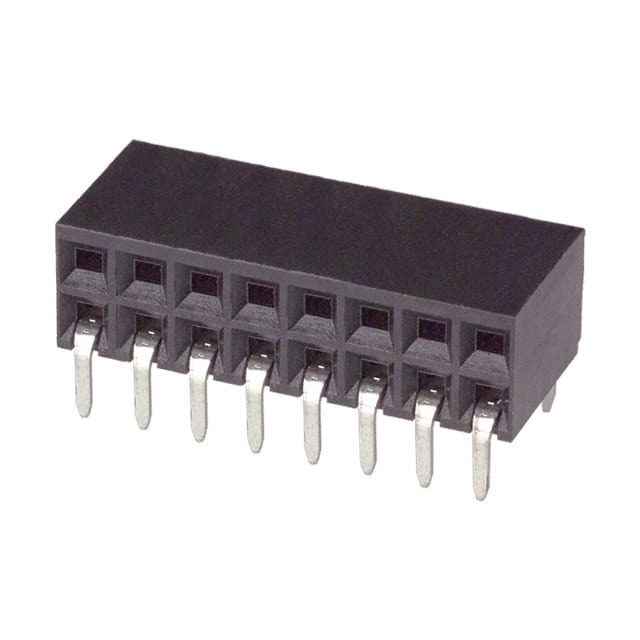

The TE Connectivity 1-535512-8 is a 16-position receptacle designed for PCB applications. It features a 2.54mm pitch and 2.54mm row spacing with through hole, right angle mounting and solder termination. The contact finish is Tin-Lead with a thickness of 0.76µm, and the fastening type is push-pull.
Electrically, this receptacle is rated for 2A per contact. It operates over a wide temperature range of -55°C to 125°C, making it suitable for demanding environments. The insulation is black with a UL94 V-0 flammability rating, ensuring safety in high-temperature conditions.
Mechanically, the part has a contact length of 2.92mm and an insulation height of 6.05mm. It is designed for reliable mating with compatible 2.54mm pitch headers. The right-angle orientation allows for compact PCB layouts where space is constrained.
This component is commonly used in wire-to-board and board-to-board interconnections across industrial, consumer, and telecommunications equipment. No RoHS compliance status is confirmed, and a datasheet is not available from the manufacturer.
16 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
The current rating is 2A per contact.
Through hole, right angle mounting with solder termination.
-55°C to 125°C.
Tin-Lead with a thickness of 0.76µm (30.0µin).
Push-pull.
