| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

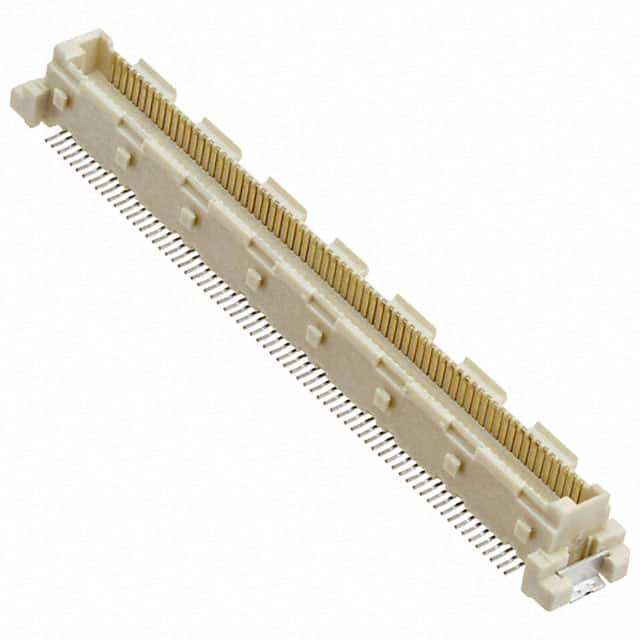

The 1-5353185-0 is a surface mount plug connector from TE Connectivity, part of their array series designed for mezzanine board-to-board applications. It offers 140 positions arranged in 2 rows with a fine 0.6mm pitch, enabling high-density interconnections. The connector features outer shroud contacts with gold plating (8µin thickness) for reliable signal integrity and corrosion resistance.
With a mated stacking height of 4mm and a height above board of 0.214 inches (5.45mm), this connector is suitable for compact electronic assemblies. The surface mount design includes board guide and solder retention features for secure placement and reliable soldering during manufacturing. The connector is RoHS3 compliant and unaffected by REACH, though these compliance claims are unverified.
This connector is ideal for applications requiring dense, reliable connections between parallel circuit boards, such as in telecommunications, computing, and industrial electronics. The gold-plated contacts ensure low contact resistance and durability through multiple mating cycles.
| Qty | Low | High |
|---|---|---|
| 1,600+ | $9.72 | $9.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
140 positions.
0.60mm (0.024 inches).
Surface mount.
Gold, with a thickness of 8.00µin (0.203µm).
4mm.
Yes, it includes board guide and solder retention.
2 rows.
