| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

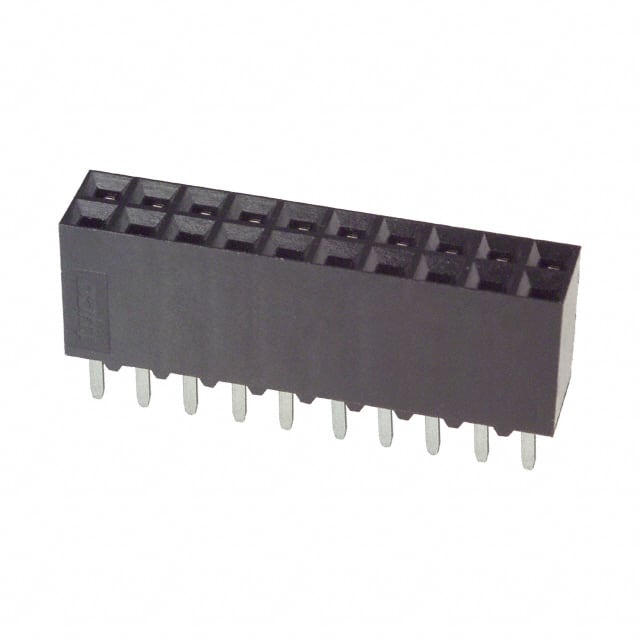

The TE Connectivity 1-534206-0 is a 20-position receptacle connector designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and two rows of female socket contacts, with all 20 positions loaded. The connector uses a push-pull fastening mechanism and is terminated via through-hole solder connections.
This connector is rated for a current of 2A per contact and operates over a temperature range of -65°C to 125°C. The contacts are finished with tin-lead plating (30.0µin thickness) and the insulation is black with a height of 8.13mm. The contact length is 2.92mm and row spacing is 2.54mm.
Designed for board-to-board or cable applications, this through-hole receptacle provides reliable interconnections in a variety of electronic assemblies. The 20-position, 2-row configuration with 2.54mm pitch is a common industry standard for signal and low-power connections.
The pitch is 2.54mm (0.100").
It has 20 positions arranged in 2 rows.
The current rating is 2A per contact.
It is a through-hole mount connector with solder termination.
The operating temperature range is -65°C to 125°C.
The contact finish is tin-lead with a thickness of 30.0µin (0.76µm).
