| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,336 pcs
|
2336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

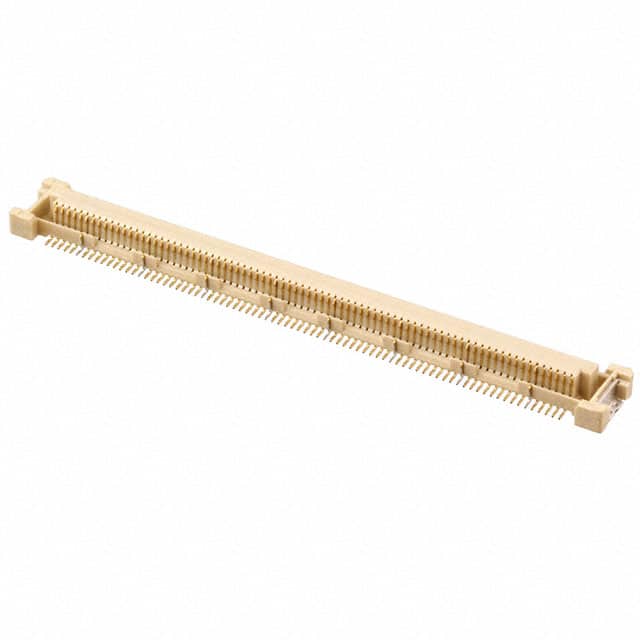

The TE Connectivity 1-5316077-1 is a 160-position receptacle connector specifically designed for high-density mezzanine board-to-board connections. It features two rows with a 0.6mm pitch, enabling compact and efficient signal routing in space-constrained designs.
This connector utilizes a surface mount mounting type and is equipped with gold-plated contacts with a thickness of 8.00µin (0.203µm) for reliable performance and corrosion resistance. The connector includes board guide and solder retention features to ensure proper alignment and robust mechanical attachment during assembly.
With a height above board of 3.25mm, this connector is suitable for low-profile stacking applications. It is RoHS3 compliant and REACH unaffected as per manufacturer claim, though these compliances are unverified.
160 positions.
0.6mm.
Surface mount.
Gold with 0.203µm thickness.
3.25mm.
Board guide and solder retention.
RoHS3 compliant per manufacturer claim, but unverified.
