| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

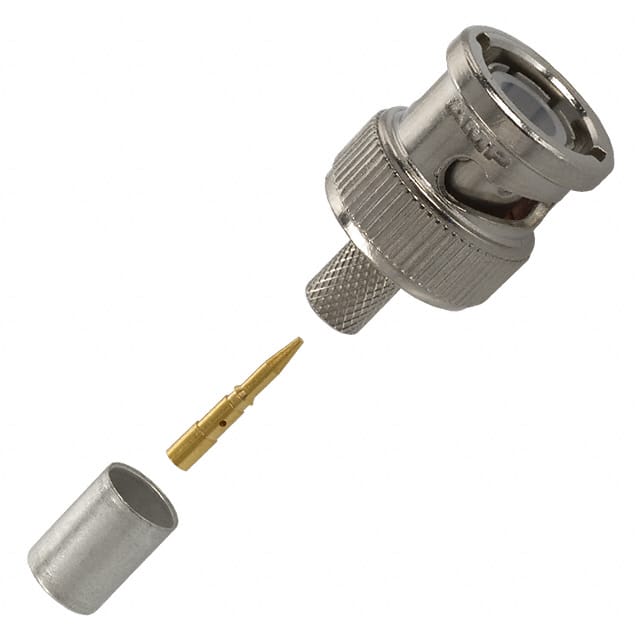

The 1-5221128-7 is a BNC coaxial connector plug from TE Connectivity, designed for 50 Ohm impedance RF applications up to 4 GHz. It features a male pin contact and uses a bayonet lock fastening mechanism for quick and secure connections. The connector is terminated using crimp methods for both the center contact and shield, ensuring reliable electrical and mechanical performance.
This connector is configured for free hanging (in-line) mounting, making it suitable for cable assembly applications. The center contact is made of brass with a silver housing color. It is specifically designed for use with Belden 9266 coaxial cable, providing a proper impedance match and signal integrity.
With a single port and robust construction, the 1-5221128-7 is suited for a variety of RF signal transmission needs. The crimp termination simplifies field installation and provides consistent performance.
50 Ohm
4 GHz
BNC plug, male pin
Free hanging (in-line)
Crimp
Belden 9266
Bayonet lock
