| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
97 pcs
|
97 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

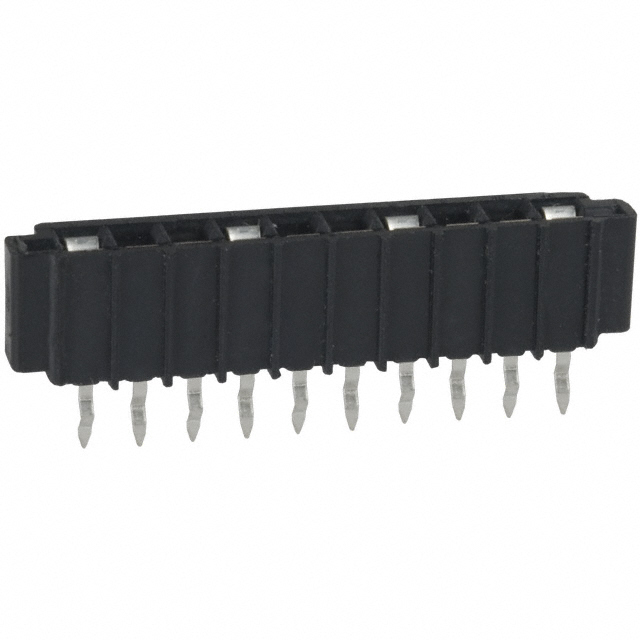

The TE Connectivity 1-520315-0 is a 10-position FFC/FPC connector designed for through hole mounting. It features a 2.54mm pitch and vertical orientation with contacts on one side. The connector accepts FFC/FPC cables with thickness ranging from 0.13mm to 0.38mm. The housing is made of glass-filled polyester thermoplastic with UL94 V-0 flammability rating. Contacts are phosphor bronze with tin finish. The operating temperature range is -55°C to 105°C, and the voltage rating is 250V. This connector is suitable for applications requiring reliable flat flexible cable connections in a compact vertical form factor.
10 positions.
2.54mm (0.100 inches).
250V.
Through hole mounting.
-55°C to 105°C.
FFC/FPC cables with thickness from 0.13mm to 0.38mm.
Polyester thermoplastic, glass filled, with UL94 V-0 rating.
