| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
586 pcs
|
586 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

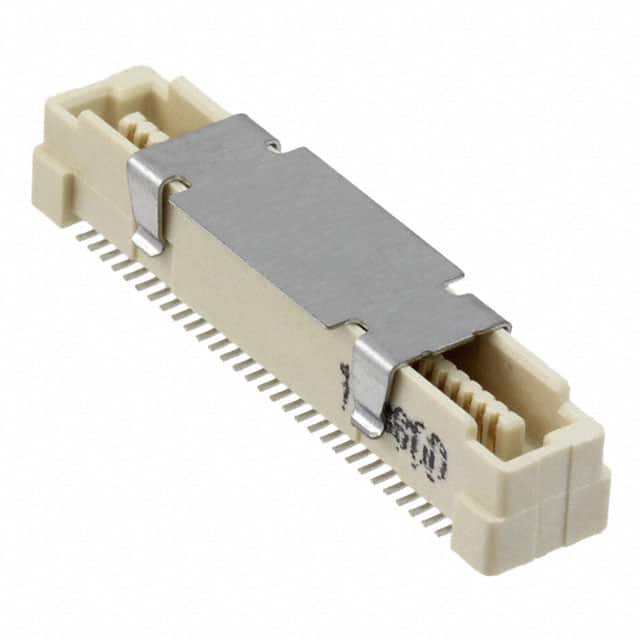

The TE Connectivity 1-5177986-2 is a 60-position plug connector designed for board-to-board mezzanine applications. It features a 0.8mm pitch and two rows of center strip contacts, providing a compact interconnect solution. The connector is surface mount compatible and includes a board guide feature for reliable alignment during assembly.
Gold plating on the contacts ensures excellent conductivity and corrosion resistance, with a contact finish thickness of 8.00 microinches (0.203 micrometers). The connector supports multiple mated stacking heights of 6mm, 10mm, 14mm, and 18mm, offering flexibility in system design. The height above board is 0.230 inches (5.85mm).
This plug connector is suitable for use in arrays, edge type, and mezzanine board-to-board configurations. It is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
The pitch is 0.80mm (0.031 inches).
It has 60 positions arranged in 2 rows.
It uses surface mount (SMD) mounting.
The contact finish is gold with a thickness of 8.00 microinches (0.203 micrometers).
It supports mated stacking heights of 6mm, 10mm, 14mm, and 18mm.
Yes, it includes a board guide feature.
