| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style |

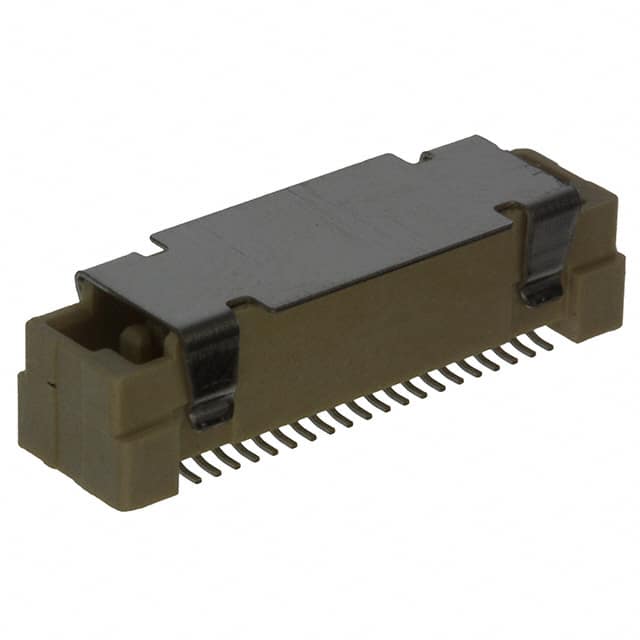

The TE Connectivity 1-5177986-1 is a 40-position plug connector featuring center strip contacts designed for board-to-board mezzanine applications. It has a 0.80mm (0.031") pitch and a 2-row configuration. The connector is surface mount (SMD) with gold contact finish of 8.00µin (0.203µm). It supports mated stacking heights of 6mm, 10mm, 14mm, and 18mm, and includes a board guide feature for alignment during assembly. The height above board is 0.230" (5.85mm). This connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.57 | $3.57 |
| 10+ | $3.16 | $3.16 |
| 25+ | $2.82 | $2.82 |
| 100+ | $2.69 | $2.69 |
| 250+ | $2.52 | $2.52 |
| 500+ | $2.32 | $2.32 |
| 800+ | $2.23 | $2.23 |
| 4,800+ | $2.02 | $2.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.80mm (0.031").
It has 40 positions arranged in 2 rows.
Surface mount (SMD).
Gold with a thickness of 8.00µin (0.203µm).
6mm, 10mm, 14mm, and 18mm.
