| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

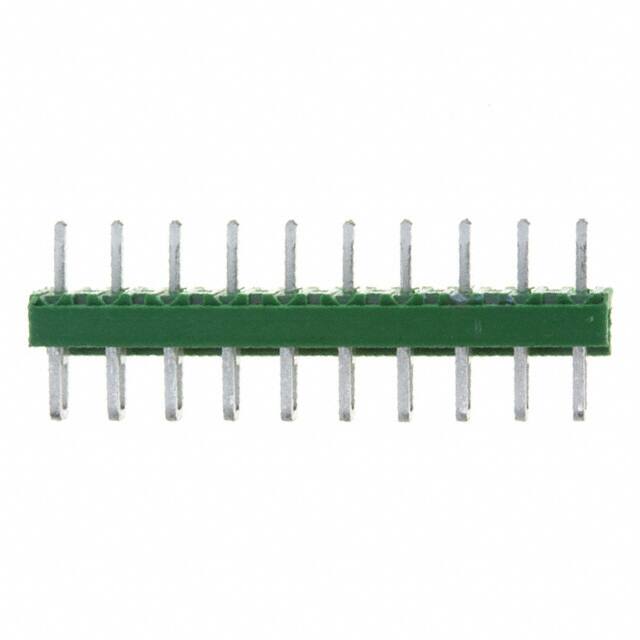

The TE Connectivity 1-5164713-0 is a 10-position unshrouded header connector designed for board-to-cable/wire applications. It features a single row of rectangular tab contacts with a 2.50mm pitch, making it suitable for compact wire-to-board connections. The header is through-hole mounted with solder termination, providing a reliable mechanical and electrical connection. The contacts are made of brass with a tin finish, and the housing is green glass-filled PBT (polybutylene terephthalate) insulation. The overall contact length is 9.09mm (0.358") with a contact length of 3.20mm and an insulation height of 3.00mm. This unshrouded design allows for easy mating and unmating.
10 positions.
2.50mm (0.098").
Through hole.
No, it is unshrouded.
Tin.
Polybutylene Terephthalate (PBT), glass filled.
0.358" (9.09mm).
