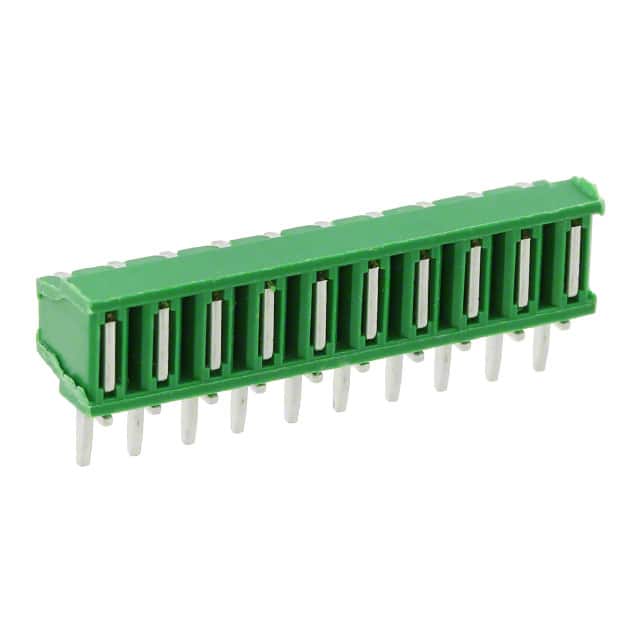

1-5164711-0 10-position, 2.50mm pitch board-to-board receptacle with through-hole right-angle mounting and tin contacts. Features friction lock and green UL94 V-0 insulation.
Mfr Part #:

1-5164711-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
10-position, 2.50mm pitch board-to-board receptacle with through-hole right-angle mounting and tin contacts. Features friction lock and green UL94 V-0 insulation.
✓ Total Stock: 6,000 pcs

1-5164711-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-5164711-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Type
Fastening Type
Industrial Grade
Insulation Color
Insulation Height
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Style
Tape & Reel
Termination
View Similar Products (0)

1-5164711-0 Description

Short technical summary and product information.

The TE Connectivity 1-5164711-0 is a 10-position single-row board-to-board receptacle with a 2.50mm (0.098") pitch. It features a through-hole right-angle mounting style with solder termination, making it suitable for PCB applications requiring a low-profile right-angle connection. The contact type is forked with a tin finish, ensuring reliable electrical performance. The connector includes a friction lock fastening type for secure mating and a green insulation housing with a height of 6.10mm. The operating temperature range is -40°C to 85°C, and the housing material is rated UL94 V-0 for flammability. All 10 positions are loaded. The contact length is 3.20mm.

1-5164711-0 Quick Information

Product Type: Board-to-Board Receptacle
Series: Mini-Match
Canonical Name: 10 Position Single Row 2.50mm Pitch Through Hole Right Angle Board-to-Board Receptacle
Subcategory: Board-to-Board Connectors

1-5164711-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-5164711-0 Features

  • 10-position single-row receptacle with 2.50mm pitch.
  • Through-hole right-angle mounting for PCB applications.
  • Tin-plated forked contacts for reliable connections.
  • Friction lock ensures secure mating.
  • Green UL94 V-0 rated insulation housing.

1-5164711-0 Applications

  • Board-to-board interconnections in electronic assemblies.
  • Suitable for low-power signal and power applications.
  • Ideal for compact PCB layouts requiring right-angle connectors.

1-5164711-0 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1-5164711-0 have?

10 positions.

What is the pitch of this connector?

2.50mm (0.098").

What is the mounting type?

Through hole, right angle.

What is the contact finish?

Tin.

What is the fastening type?

Friction lock.

What is the operating temperature range?

-40°C to 85°C.

What is the material flammability rating?

UL94 V-0.
