| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

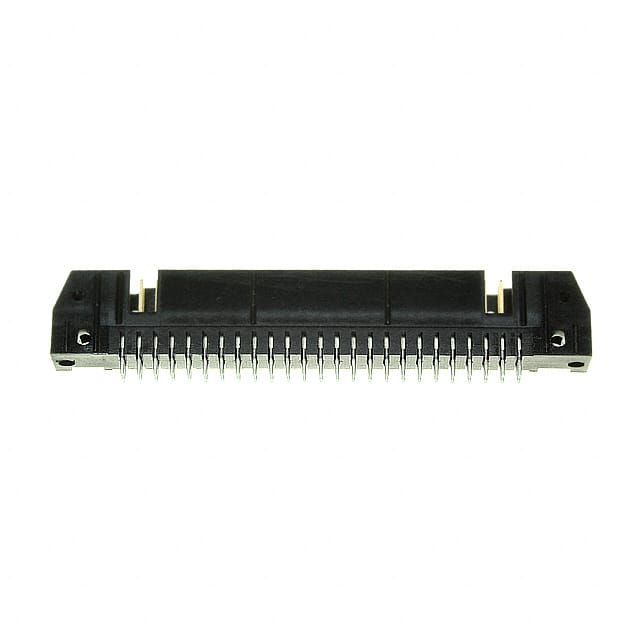

The TE Connectivity 1-5102154-0 is a 50-position, 2-row, shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with a through-hole mounting style and solder termination. The header is fully shrouded with a 4-wall design and includes a keying slot and mounting flange for secure alignment and mating.
The male pin contacts are square in shape and finished with 30.0µin (0.76µm) of tin. The mating contact length is 6.10mm (0.240"), and the overall contact length is 0.639" (16.23mm). The black insulation has a height of 13.94mm (0.549") and is rated UL94 V-0 for flammability.
This connector is rated for 1A per contact and operates over a temperature range of -65°C to 105°C. It uses a push-pull fastening type and is suitable for applications requiring a reliable, polarized connection.
It has 50 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 1A per contact.
It uses through-hole mounting with solder termination.
Yes, it is fully shrouded with a 4-wall design.
The operating temperature range is -65°C to 105°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
