| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | 1212 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

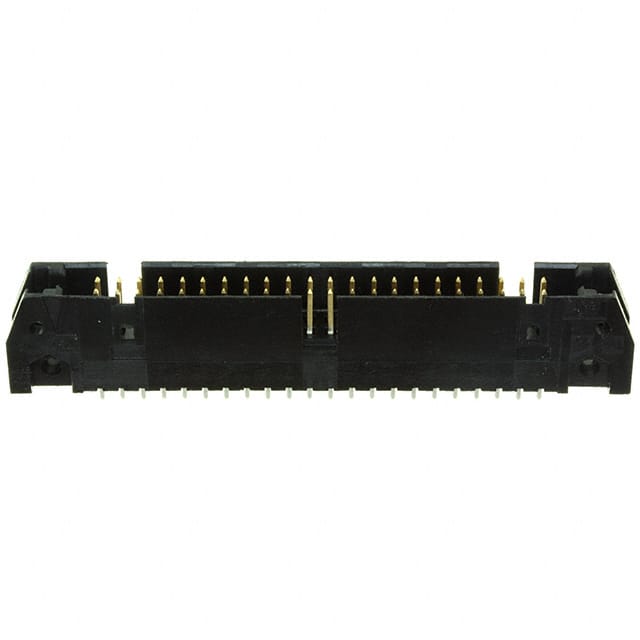

The TE Connectivity 1-5102153-3 is a 44-position shrouded header designed for board-to-cable/wire applications. It features two rows of male pins on a standard 2.54mm pitch with a row spacing of 2.54mm, making it suitable for dense interconnect requirements.
The connector is through-hole mounted with solder termination and includes a 4-wall shroud for pin protection and alignment. The housing is black with a UL94 V-0 flammability rating, and the square tin-plated contacts have a thickness of 0.38µm. A mounting flange provides additional mechanical stability.
Rated for 1A per contact, the header operates over a temperature range of -55°C to 105°C. The push-pull fastening type allows for easy mating and unmating.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
It has 44 positions arranged in 2 rows, all positions loaded.
The current rating is 1A per contact.
It is a through-hole mounting connector with solder termination.
The operating temperature range is -55°C to 105°C.
Yes, it features a shrouded 4-wall design for pin protection.
The contact finish is tin with a thickness of 0.38µm (15.0µin).
