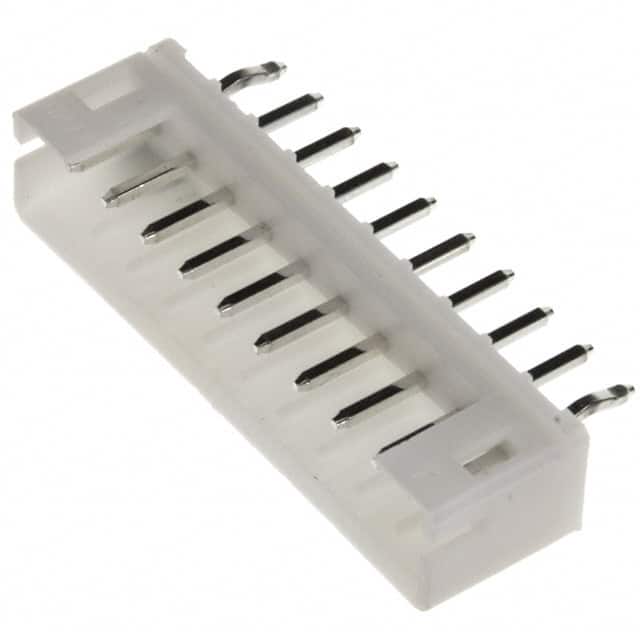

1-440054-0 TE Connectivity 1-440054-0 is a 10-position, 2.00mm pitch shrouded header with male pins. Designed for board-to-cable/wire applications, it features through hole mounting and press-fit/solder termination.
Mfr Part #:

1-440054-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-440054-0 is a 10-position, 2.00mm pitch shrouded header with male pins. Designed for board-to-cable/wire applications, it features through hole mounting and press-fit/solder termination.
✓ Total Stock: 18,700 pcs
$ Price Range: $0.28 - $0.59

1-440054-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
18,700 pcs
On Request
18700 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-440054-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1-440054-0 Description

Short technical summary and product information.

The TE Connectivity 1-440054-0 is a 10-position, single-row, shrouded header with square male pin contacts. It uses a 2.00mm pitch and is designed for board-to-cable/wire applications. The header has a 4-wall shrouded design, providing protection to the contacts. Contacts are made of brass with a tin finish (80µin thickness). The insulator is natural-colored polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating. This header supports through hole mounting with press-fit or solder termination. Electrical ratings are 3A current and 250V voltage. The operating temperature range is -25°C to 85°C. The contact length is 3.35mm, overall contact length is 0.335 inches (8.51mm), and insulation height is 6.05mm. This component is commonly used in industrial control, consumer electronics, and other wire-to-board interconnection applications.

1-440054-0 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1-440054-0, Header, Male Pin, 10 Position, 2.00mm Pitch, Through Hole, Shrouded
Subcategory: Male Pin Header

1-440054-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-440054-0 Estimated Pricing

Qty Low High
1+ $0.59 $0.59
10+ $0.52 $0.52
25+ $0.47 $0.47
100+ $0.43 $0.43
300+ $0.39 $0.39
1,200+ $0.33 $0.33
2,700+ $0.31 $0.31
5,100+ $0.29 $0.29
10,200+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

1-440054-0 Features

  • Square male pin contacts.
  • 10 positions in single row.
  • 2.00mm pitch saves board space.
  • Shrouded 4-wall design.
  • Rated 3A current and 250V.

1-440054-0 Applications

  • Board to cable/wire connection.
  • Through hole mounting applications.
  • Industrial control systems.
  • Consumer electronics wiring.

1-440054-0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions.

What is the pitch?

2.00mm (0.079 inches).

What is the current rating?

3A.

What is the voltage rating?

250V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-25°C to 85°C.

What is the insulation material?

Polyamide (PA66), Nylon 6/6 with UL94 V-0 flammability rating.
