| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,320 pcs
|
14320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Termination |

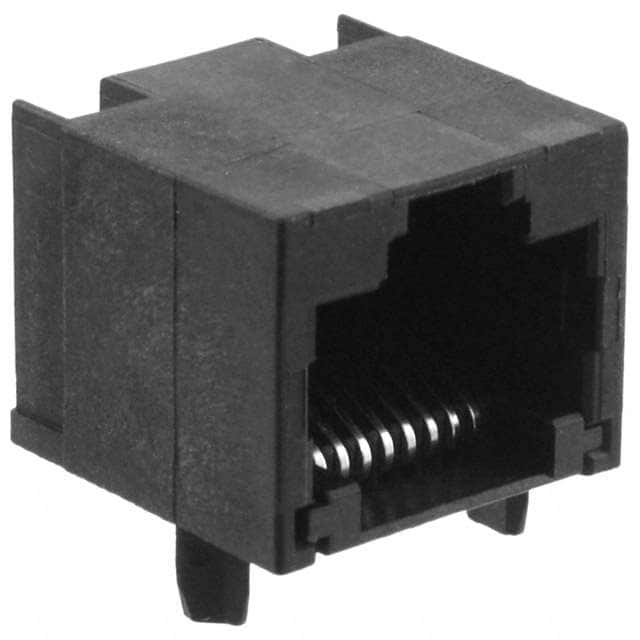

The TE Connectivity 1-406525-1 is a modular connector jack designed for 8P8C (RJ45) Ethernet applications. It offers a single port with through-hole termination and a 90° right-angle orientation, making it suitable for compact PCB layouts where space is constrained.
This unshielded jack features gold-plated phosphor bronze contacts for reliable signal integrity and corrosion resistance. It is rated for Cat5 performance, supporting standard Ethernet data rates. The connector includes a board guide feature to aid in alignment during assembly.
With a tab direction of up, this jack is compatible with standard RJ45 plugs. The through-hole solder termination provides a robust mechanical connection to the PCB. The part is RoHS3 compliant and has an MSL of Level 1 (unlimited) for moisture sensitivity.
This is a modular jack with 8 positions and 8 contacts (8P8C), commonly used for RJ45 Ethernet connections.
It is a through-hole mount connector with a 90° right-angle orientation.
No, this connector is unshielded.
The contacts are made of phosphor bronze with a gold finish.
It is rated for Cat5 performance.
