| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Termination | |
| Termination Style | |
| Type |

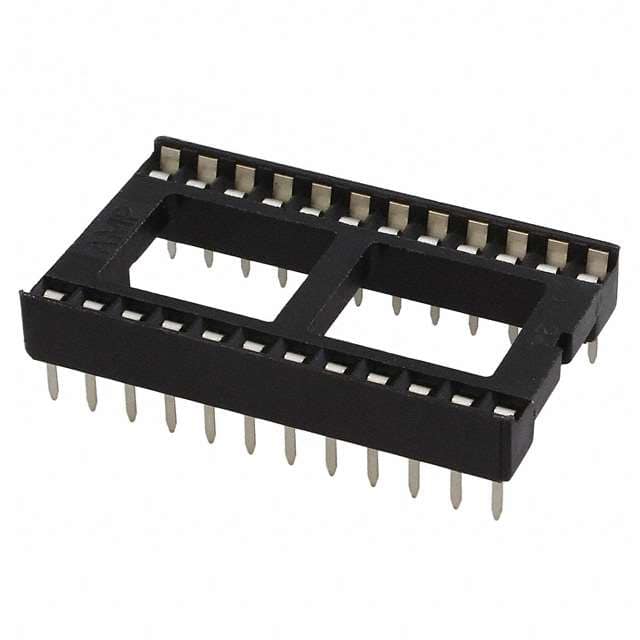

The TE Connectivity 1-390262-1 is a 24-position DIP socket designed for through-hole mounting with a standard 2.54mm (0.100 inch) pitch and 0.3 inch (7.62mm) row spacing. The socket features an open frame construction, allowing for improved airflow and easier inspection of solder joints.
The contacts are made from phosphor bronze with a tin finish, providing reliable electrical conductivity and solderability. The socket is rated for an operating temperature range of -40°C to 105°C, making it suitable for a wide variety of commercial and industrial applications.
This socket is intended for use with dual-in-line package (DIP) integrated circuits. Its through-hole solder termination ensures a secure mechanical and electrical connection to the printed circuit board.
This DIP socket has 24 positions arranged as 2 rows of 12.
The pitch is 2.54mm (0.100 inches).
It is a through-hole mount component with solder termination.
The operating temperature range is -40°C to 105°C.
The contact finish is tin.
The contacts are made from phosphor bronze.
