| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

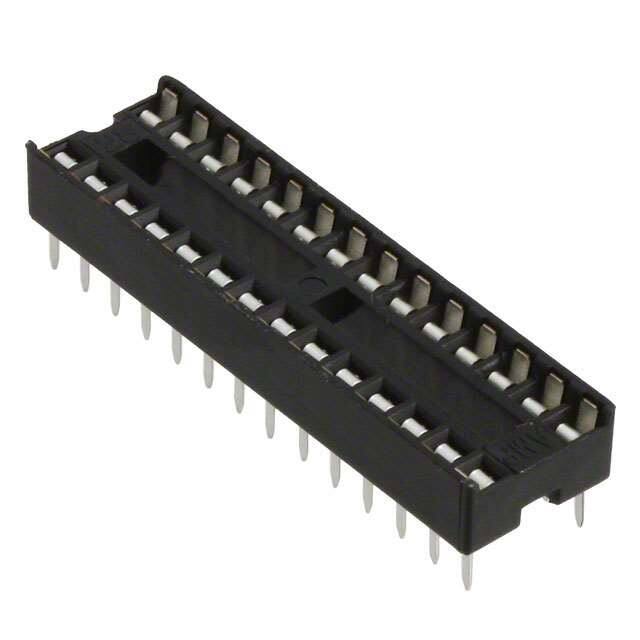

The TE Connectivity 1-390261-9 is a 28-position (2x14) DIP IC socket designed for through hole mounting. It has a standard 0.3" (7.62mm) row spacing and a 2.54mm pitch, making it compatible with common 28-pin DIP ICs. The socket features an open frame design, which allows for improved airflow and easier cleaning after soldering. Contacts are made of phosphor bronze with a tin finish of 60µin (1.52µm), providing reliable electrical connections. The socket operates over a temperature range of -40°C to 105°C, suitable for industrial environments. It is listed as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). This socket is ideal for prototyping, programming, and production applications where a durable and cost-effective IC socket is required.
| Qty | Low | High |
|---|---|---|
| 50+ | $0.79 | $0.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
28 positions (2 x 14).
2.54mm (0.100").
Through hole.
-40°C to 105°C.
Tin with 60µin thickness.
Phosphor bronze.
Yes, it is an open frame socket.
