| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

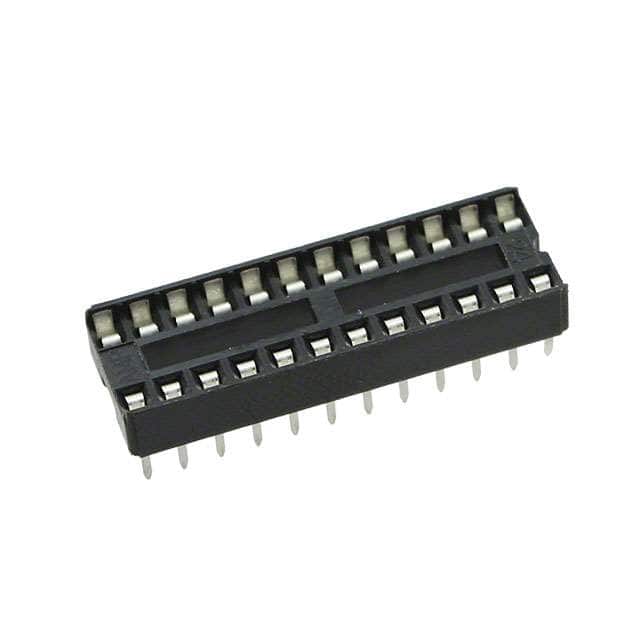

The TE Connectivity 1-390261-8 is a 24-position DIP IC socket designed for through-hole mounting. It features an open frame construction with a standard 0.3 inch (7.62mm) row spacing and 2.54mm (0.100 inch) pitch between pins, making it suitable for dual-in-line package integrated circuits.
The socket termination is solder, and the contacts are made of phosphor bronze with a tin plating of 60 microinches (1.52 micrometers). This provides reliable electrical connectivity and corrosion resistance for general-purpose applications.
Designed for an operating temperature range of -40°C to 105°C, this socket can be used in a variety of environments. The open frame design allows for airflow and visual inspection of solder joints after installation.
24 positions arranged as 2 rows of 12 (2 x 12).
2.54mm (0.100 inch).
Through hole with solder termination.
-40°C to 105°C.
Phosphor bronze with a tin finish of 60 microinches (1.52 micrometers).
Yes, it features an open frame design.
