| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
480 pcs
|
480 pcs | On Request | 1 | On Request | On Request | 0734 | On Request | On Request | |
|
33 pcs
|
33 pcs | On Request | 24 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

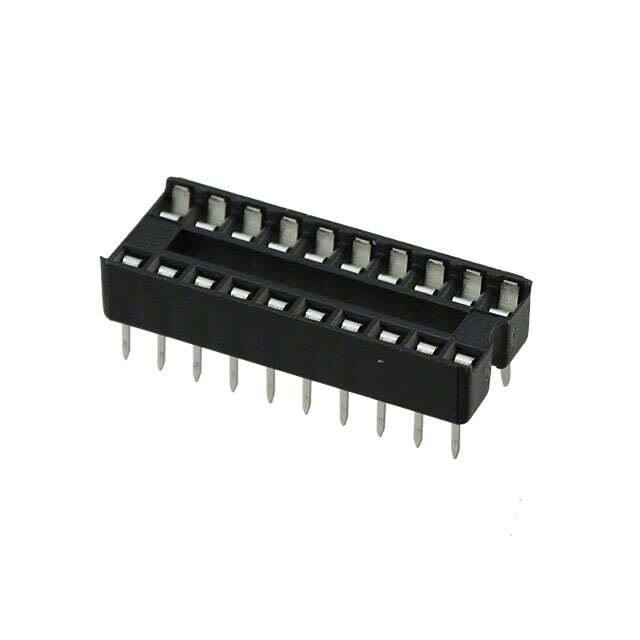

The TE Connectivity 1-390261-6 is a 20-position DIP IC socket designed for through-hole mounting on PCBs. It features a 0.3" (7.62mm) row spacing with a 2.54mm pitch (0.100"), accommodating 2x10 pin IC packages. The socket uses phosphor bronze contacts with a tin finish of 60.0µin (1.52µm) for reliable electrical connections.
The open frame design allows for improved airflow around the socket, aiding thermal management. The socket supports an operating temperature range of -40°C to 105°C, making it suitable for a variety of environments. Termination is via solder to the PCB.
This socket is commonly used in prototyping, test fixtures, and production assemblies where ICs need to be socketed for easy replacement or upgrade. The through-hole package provides strong mechanical retention compared to surface-mount alternatives.
20 positions arranged as 2x10.
2.54mm (0.100") pitch.
Through-hole mounting with solder termination.
Phosphor bronze.
Tin with 60.0µin (1.52µm) thickness.
-40°C to 105°C.
Yes, it features an open frame.
