| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Type |

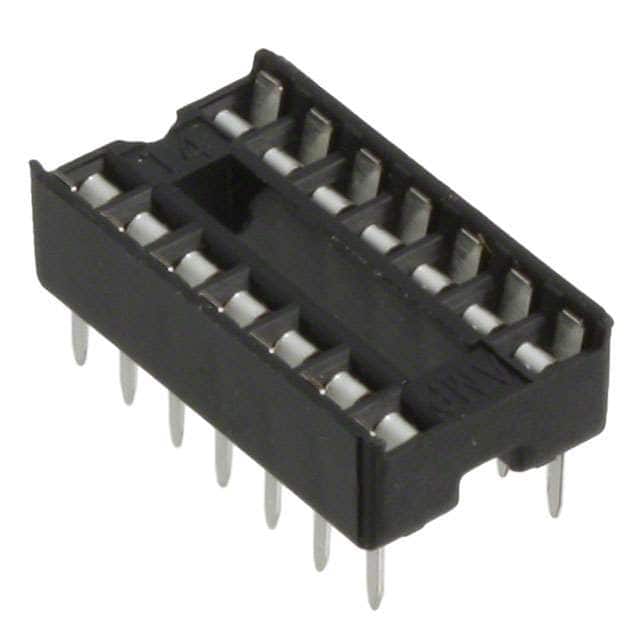

The 1-390261-3 is a 14-position DIP IC socket from TE Connectivity, designed for through-hole mounting on PCBs. It features a 0.3" (7.62mm) row spacing and 2.54mm (0.100") pitch, making it suitable for standard 14-pin DIP ICs. The socket employs an open frame design with tin-plated phosphor bronze contacts, ensuring reliable electrical connections and ease of IC insertion and removal. The contact finish thickness is 60.0µin (1.52µm). The operating temperature range spans -40°C to 105°C, accommodating a wide variety of environments. The socket is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). This component is commonly used in prototyping, production, and testing applications where a durable and reusable connection is required for dual-in-line packages.
14 positions in a 2x7 grid.
2.54mm (0.100").
0.3" (7.62mm).
Through hole.
Phosphor bronze with tin finish, thickness 60µin.
-40°C to 105°C.
RoHS3 compliant, REACH unaffected, MSL 1 (unlimited).
