| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,288 pcs
|
3288 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Category | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Ingress Protection | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

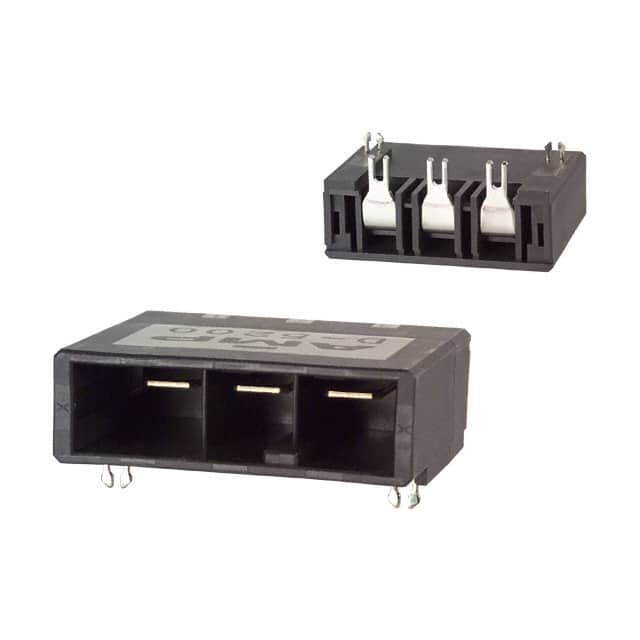

The TE Connectivity 1-353081-2 is a rectangular connector header designed for board-to-cable/wire applications. It features 3 positions in a single row with a 10.16mm pitch, making it suitable for high-power connections. The header is shrouded with a 4-wall design and includes a detent lock for secure mating. Contacts are made of copper alloy with a tin finish (15.0µin) and are rectangular tabs. The insulation is black thermoplastic, polyester, glass filled with a UL94 V-0 flammability rating. Mounting is through hole, right angle, with solder termination and a board lock feature for additional retention. The operating temperature range is -55°C to 105°C, and the ingress protection rating is IP20.
The 1-353081-2 has 3 positions in a single row.
The pitch is 10.16mm.
The current rating is 30A.
The voltage rating is 630V.
The mounting type is through hole, right angle.
The operating temperature range is -55°C to 105°C.
The insulation material has a UL94 V-0 flammability rating.
