| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

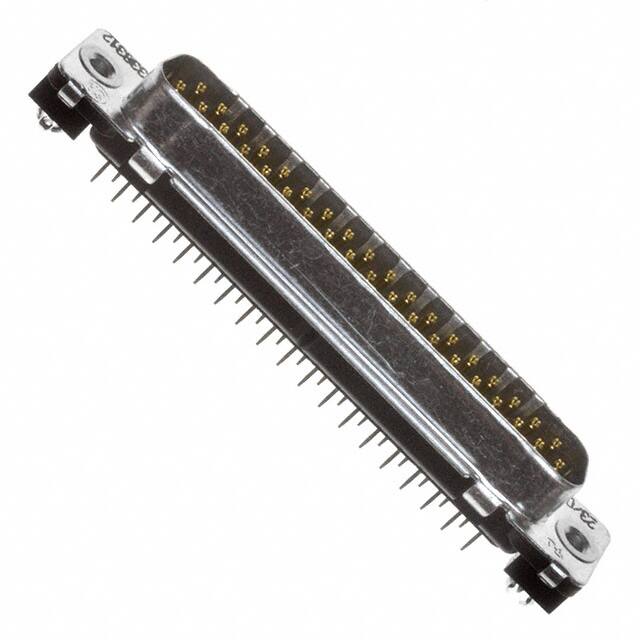

This is a TE Connectivity D-Sub plug connector, part number 1-338312-2, featuring 37 male pins arranged in 2 rows. It uses a through hole mounting type with solder termination for reliable PCB attachment.
The connector is rated for 6A current and has gold-plated signal contacts. The shell is steel with tin plating, size 4 (DC, C layout), and includes a flange feature with housing/shell (4-40) threads. Additional features include board lock and grounding indents for secure mechanical retention and EMI shielding.
The insulator material meets UL94 V-0 flammability rating. Compliance with RoHS, MSL 1, and REACH is noted but unverified; please verify with the manufacturer before use.
37 positions.
6A.
Through hole.
D-Sub.
Gold.
Steel, Tin Plated.
2 rows.
