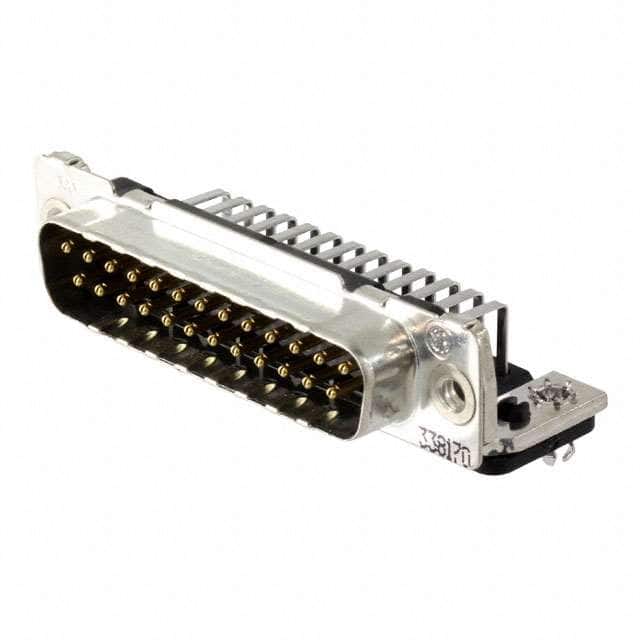

This TE Connectivity 1-338170-2 is a D-Sub plug connector featuring 25 male pin contacts arranged in 2 rows. It utilizes a through-hole, right-angle mounting style with solder termination for reliable PCB attachment. The connector incorporates a steel, tin-plated shell with a housing/shell flange feature (4-40) and includes board lock and grounding indent features for secure mechanical retention and EMI grounding.
Gold contact finish ensures low resistance and corrosion resistance over repeated mating cycles. The connector is rated for a current of 6 A per contact. The shell size is 3 (DB, B) with a backset spacing of 10.30 mm. The insulator material carries a UL94 V-0 flammability rating, suitable for applications requiring fire-retardant materials.
Typical applications include data communication, industrial control, and instrumentation where a robust 25-position interface is required. The right-angle orientation allows for low-profile board-to-cable connections in space-constrained designs.
This connector has 25 positions.
The current rating is 6 A.
The mounting type is through hole, right angle.
The shell size is 3 (DB, B), which corresponds to a DB-25 layout.
The material flammability rating is UL94 V-0.
