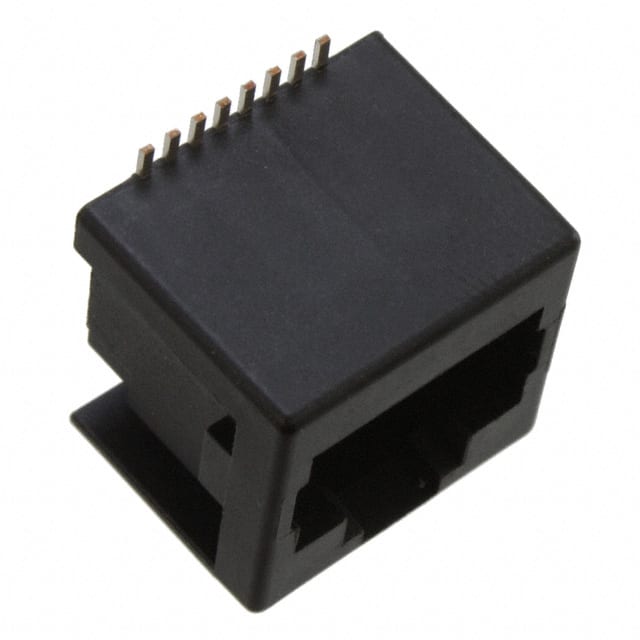

1-338088-3 TE Connectivity 1-338088-3 is a single-port 8P8C (RJ45) modular jack with vertical surface mount orientation and unshielded design. It features gold-plated phosphor bronze contacts and solder termination.
Mfr Part #:

1-338088-3

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-338088-3 is a single-port 8P8C (RJ45) modular jack with vertical surface mount orientation and unshielded design. It features gold-plated phosphor bronze contacts and solder termination.
✓ Total Stock: 5,371 pcs

1-338088-3 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
4,621 pcs
On Request
4621 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-338088-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
Halogen Free
Housing Material
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
View Similar Products (0)

1-338088-3 Description

Short technical summary and product information.

The TE Connectivity 1-338088-3 is a single-port 8P8C (RJ45) modular jack designed for vertical surface mount applications. The connector is unshielded and features a top-entry orientation, making it suitable for compact PCB layouts. Contacts are made of phosphor bronze with selective gold plating of 1.27µm in the mating zone and tin plating of 3.5-5.0µm in the solder zone, ensuring reliable connectivity and solderability. The housing is available in either 30% glass-filled PA4T (halogen free) or 30% glass-filled LCP (halogen free), both rated UL 94V-0. The part includes a solder retention feature for enhanced mechanical stability. Packaging is tape and reel per EIA 481-3 with 250 pieces on a 380mm diameter reel, and a Kapton tape on the top surface facilitates pick-and-place assembly. The jack is rated for Category 3 (Cat3) applications.

1-338088-3 Quick Information

Product Type: Modular Jack (RJ45)
Series: 338088
Canonical Name: 1-338088-3 TE Connectivity Modular Jack, 8P8C, Vertical, Surface Mount, Unshielded
Subcategory: Modular Connector Jacks

1-338088-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: REACH Unaffected

1-338088-3 Features

  • 8P8C (RJ45) connector with 1 port.
  • Vertical surface mount orientation.
  • Unshielded design for cost-sensitive applications.
  • Gold-plated phosphor bronze contacts.
  • Solder retention feature for reliability.

1-338088-3 Applications

  • Used in Cat3 Ethernet and telephony systems.
  • For surface mount PCB assembly in communication devices.
  • Ideal for networking equipment and patch panels.
  • Suitable for industrial control interfaces.

1-338088-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions of this modular jack?

This jack has 8 positions and 8 contacts (8P8C), compatible with RJ45 connectors for Ethernet applications.

What is the mounting type of the 1-338088-3?

The mounting type is Surface Mount (SMT).

What is the orientation of this connector?

The orientation is vertical (top entry).

Is the 1-338088-3 shielded or unshielded?

The jack is unshielded.

What is the contact finish on this modular jack?

The contact finish is selective gold plating of 1.27µm in the mating zone and tin plating of 3.5-5.0µm in the solder zone, with a nickel underlayer of 1.27µm minimum.

What packaging is available for the 1-338088-3?

The part is packaged in tape and reel per EIA 481-3, with 250 pieces on a 380mm diameter reel, including Kapton tape for pick-and-place assembly.

What is the housing material of the 1-338088-3?

The housing is made of either 30% glass-filled PA4T (Halogen Free) or 30% glass-filled LCP (Halogen Free), both black, rated UL 94V-0.
