| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 11:15:09 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Material | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

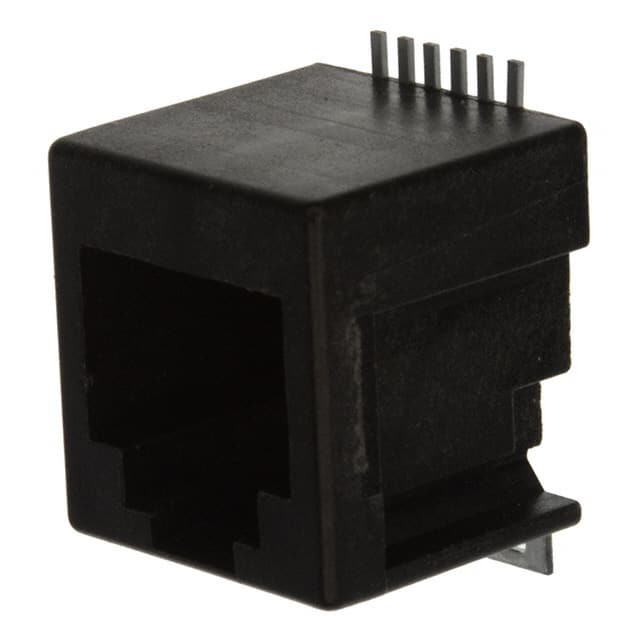

The TE Connectivity 1-338086-3 is a 6p6c (6 position, 6 contact) modular jack designed for surface-mount technology. This vertical unshielded connector is suitable for Category 3 applications, supporting voice and low-speed data transmission. It features a single port with a single row of contacts.
The connector is terminated via solder, with gold-plated phosphor bronze contacts for reliable signal integrity. The housing is made from 30% glass-filled liquid crystal polymer (LCP) rated UL 94V-0 for flammability resistance. The part includes a solder retention feature for secure mounting and a Kapton tape on the top surface for pick-and-place compatibility.
This jack is packaged in tape and reel format with 300 pieces per reel (360mm reel diameter), conforming to EIA 481-3 specifications. The coplanarity of the contacts is controlled to a maximum of 0.18mm at the tips, and a minimum solder paste thickness of 0.1mm is required.
The tab direction is user-selectable, allowing flexibility in orientation during assembly. The part does not include an LED. For cross-reference, equivalent part numbers are available from DigiKey.
This is a 6p6c (6 position, 6 contact) modular jack, compatible with RJ11, RJ12, RJ14, and RJ25 standards.
Surface mount with vertical orientation, terminated by solder.
Phosphor bronze contacts with gold plating. The plating includes nickel underplate (1.27µm min), tin on solder zone (3.5-5.0µm), and gold on mating zone.
No, this connector is unshielded.
30% glass-filled liquid crystal polymer (LCP) rated UL 94V-0.
300 pieces per reel on a 360mm diameter reel, tape and reel packaging per EIA 481-3.
RoHS3 compliant per database attribute, but not verified by manufacturer datasheet.
