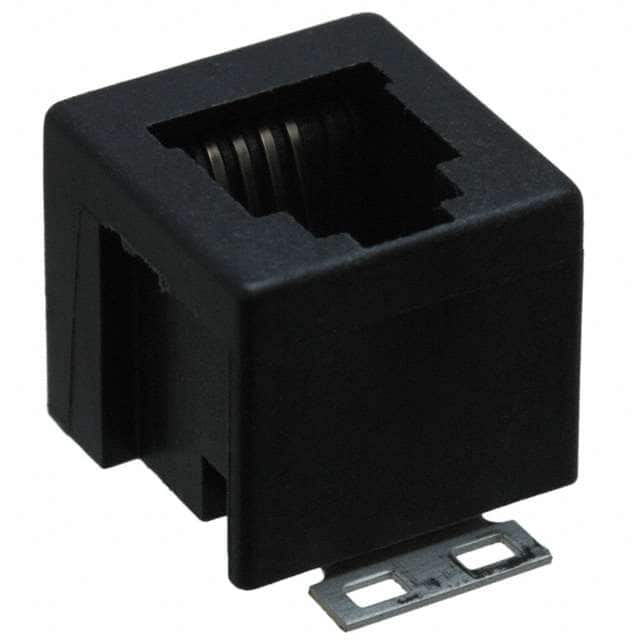

1-338084-3 TE Connectivity 1-338084-3 is a 4P4C modular jack, vertical unshielded design with surface mount solder termination. It features Cat3 rating, gold-plated phosphor bronze contacts, and solder retention.
Mfr Part #:

1-338084-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-338084-3 is a 4P4C modular jack, vertical unshielded design with surface mount solder termination. It features Cat3 rating, gold-plated phosphor bronze contacts, and solder retention.
✓ Total Stock: 1,500 pcs

1-338084-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,500 pcs
On Request
1500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-338084-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

1-338084-3 Description

Short technical summary and product information.

The TE Connectivity 1-338084-3 is a 4P4C (RJ9/RJ10/RJ22) modular jack connector designed for surface mount applications. It accommodates a single port with a vertical orientation and unshielded construction, making it suitable for basic voice and data connectivity in Category 3 environments.



Key specifications include gold-plated phosphor bronze contacts for reliable electrical performance over repeated mating cycles. The surface mount termination with solder retention ensures secure board attachment during assembly and operation. Tab direction is user selectable.



This connector is RoHS3 and REACH compliant, and it carries an MSL rating of 1 (unlimited floor life), simplifying handling and storage. It is commonly used in telecommunications equipment, networking hardware, and other applications requiring a compact 4-position modular interface.

1-338084-3 Quick Information

Product Type: Modular Connector Jack
Subcategory: 4P4C

1-338084-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1-338084-3 Features

  • 4P4C (RJ9, RJ10, RJ22) connector interface.
  • Category 3 rated for voice and low-speed data.
  • Gold-plated phosphor bronze contacts.
  • Vertical surface mount with solder retention.
  • Unshielded compact modular jack design.

1-338084-3 Applications

  • Voice communications equipment and telephones.
  • Basic 10BASE-T Ethernet networking.
  • Consumer electronics with modular jacks.
  • Test and measurement interface connections.

1-338084-3 FAQs

3 frequently asked questions generated from this part’s specifications.
How many positions and contacts does this modular jack have?

The connector has 4 positions and 4 contacts (4P4C), compatible with RJ9, RJ10, and RJ22 plugs.

What is the mounting type and orientation?

The mounting type is surface mount and the orientation is vertical.

Is this connector shielded?

No, this connector is unshielded.
