| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Plating | |
| Contact Type | |
| Failure Rate | |
| Fastening Type | |
| Housing Material | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

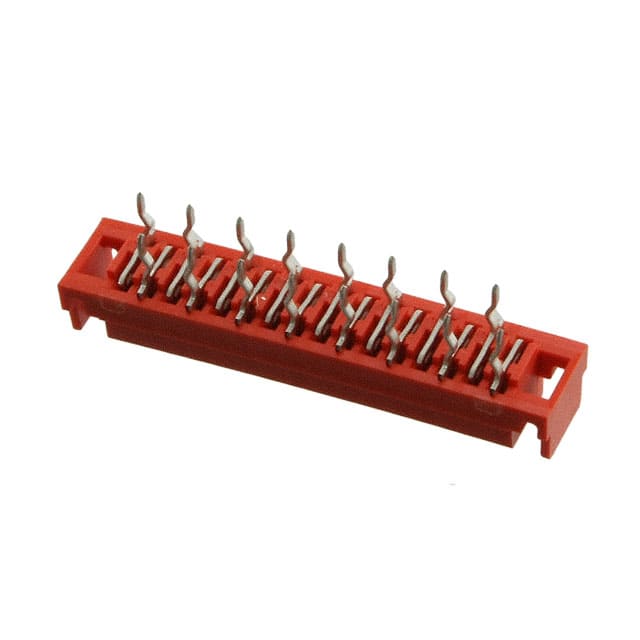

The TE Connectivity Micro-Match 1-338068-6 is a 16-position receptacle connector designed for board-to-board or cable applications. It features a through-hole mounting style with kinked pin solder termination for reliable connections. The connector has a 2.54mm pitch and 2.54mm row spacing, with all positions loaded. The housing is made of red G.F. Polyester PBT with UL94 V-0 flammability rating, and the contacts are phosphor bronze with tin over nickel plating. The insulator height is 4.00mm and contact length is 3.10mm. Operating temperature range is -40°C to 105°C. The connector is rated for 100VDC. It uses a friction lock fastening mechanism for secure mating. Packaging is tape and reel with 2500 connectors per reel.
16 positions.
2.54mm (0.100").
100VDC.
Through Hole.
-40°C to 105°C.
Tin over Nickel.
Friction Lock.
