| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,652 pcs
|
32652 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Standard Package Quantity | |
| Style | |
| Termination | |
| Voltage Rating |

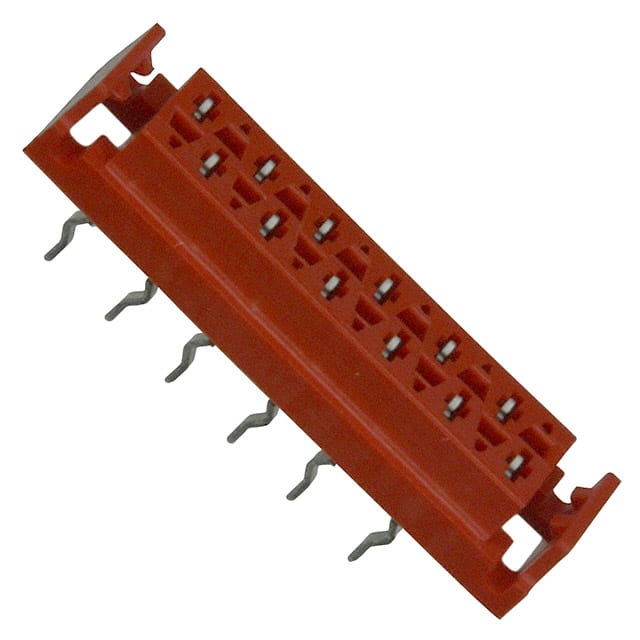

The TE Connectivity 1-338068-2 is a 12-position female receptacle connector designed for board-to-board or cable-to-board applications. It features a 2-row (2.54mm row spacing) layout with all positions loaded, employing forked tin contacts for reliable electrical connections.
Key specifications include a 2.54mm contact pitch, 100VDC voltage rating, and an operating temperature range of -40°C to 105°C. The connector uses a friction lock mechanism to secure mating, and the housing is a red PBT polyester with a UL94 V-0 flammability rating.
This component is provided in tape & reel packaging with a standard quantity of 2500 per reel, suitable for automated assembly. The contact length is 3.10mm and insulation height is 4.00mm. The connector supports solder termination with kinked pins for improved retention.
This receptacle has 12 positions, all loaded.
The nominal pitch specified in the database is 2.54mm (0.100"). Note: the datasheet indicates a 1.27mm staggered pitch; this discrepancy should be verified.
The voltage rating is 100VDC.
The mounting type is through hole.
A friction lock fastening type is employed.
The operating temperature range is -40°C to 105°C.
The insulation color is red.
