Mfr Part #:

1.30250.3210300

Mfr Name: RAFI

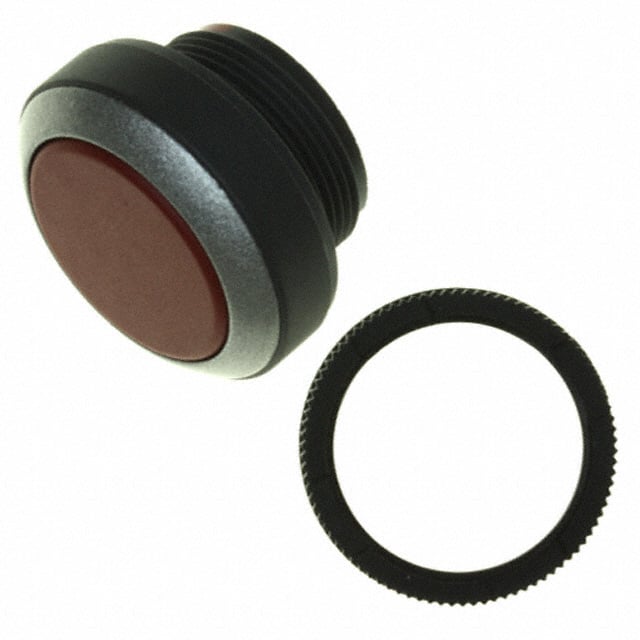

The RAFI 1.30250.3210300 is a non-illuminated, momentary pushbutton switch body for the Rafix 22 FS series. It features a round actuator and requires separate contact blocks.

✓ Total Stock: 55 pcs

$ Price Range: $0.75

1.30250.3210300 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	55 pcs On Request	55 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

1.30250.3210300 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Configurable Switch Components - Body
Manufacturer Name	RAFI
(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Actuator Type	Pushbutton, Round
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Momentary

View Similar Products (0)

1.30250.3210300 Description

Short technical summary and product information.

The RAFI 1.30250.3210300 is a configurable switch body designed for the Rafix 22 FS series. This component features a momentary, pushbutton actuator with a round operating element and a non-illuminated design. It requires separate contact blocks to complete the switch assembly.

The panel cutout dimension for this switch body is 22.3mm (round). Its primary function is to serve as the central housing for configurable switch components, providing a robust and reliable interface for control panels. The design emphasizes a slim profile and fast connection options, characteristic of the RAFIX 22 FS+ series.

This switch body is compatible with the Rafix 22 FS series, offering versatility in building custom control interfaces. Its construction is suitable for various industrial applications where reliable manual input is essential. The non-illuminated nature makes it ideal for applications where visual feedback is provided by other means or is not required.

1.30250.3210300 Quick Information

Product Type: Configurable Switch Body

Series: RAFIX 22 FS

Canonical Name: RAFI 1.30250.3210300 Configurable Switch Body

Subcategory: Configurable Switch Body

1.30250.3210300 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1.30250.3210300 Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

1.30250.3210300 Features

Momentary pushbutton switch body.
Non-illuminated round actuator.
Requires separate contact blocks.
22.3mm round panel cutout.
Compatible with Rafix 22 FS series.

1.30250.3210300 Applications

Used in control panel assemblies.
Provides manual operator input.
Suitable for momentary actions.
Integrates with Rafix 22 FS systems.

1.30250.3210300 FAQs

5 frequently asked questions generated from this part’s specifications.

What type of actuator does the RAFI 1.30250.3210300 have?

It has a pushbutton, round actuator.

Is the RAFI 1.30250.3210300 illuminated?

No, it is non-illuminated.

What is the panel cutout size for this switch body?

The panel cutout dimension is 22.3mm (Round).

What series is the RAFI 1.30250.3210300 compatible with?

It is compatible with the Rafix 22 FS series.

Does this switch body include contact blocks?

No, it requires separate contact blocks.

1.30250.3210300 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

1.30250.1710700

RAFI

The RAFI 1.30250.1710700 is a non-illuminated, momentary pushbutton switch body compatible with the Rafix 22 FS series. It features a round actuator and requires separate contact blocks.

View Part
