| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,000 pcs
|
7000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

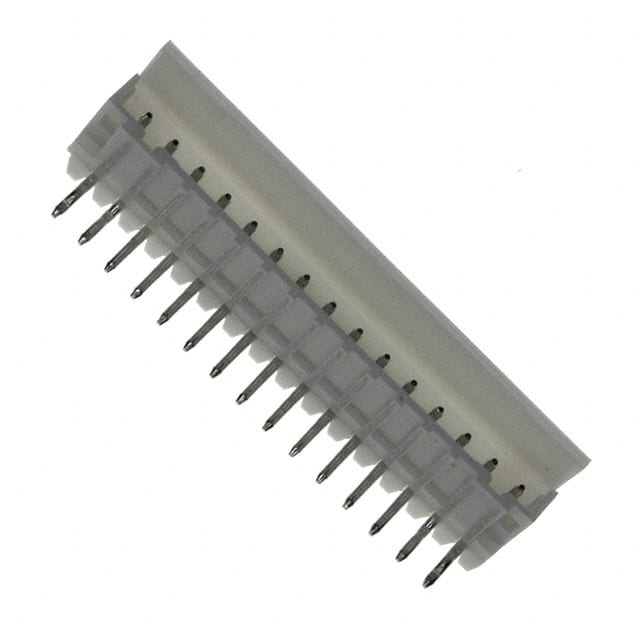

The TE Connectivity 1-292250-5 is a 15-position, single-row, shrouded header designed for board-to-cable/wire connections. It features a 2.00mm pitch and a through hole right angle mounting style with kinked pin solder termination. The header is fully shrouded with four walls and includes a detent lock fastening system for secure mating.
The contacts are made of brass with a tin finish, and the insulator is natural-colored polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating. The contact length is 4.20mm and the insulation height is 5.80mm. This connector is rated for 125VAC and its current rating varies by wire gauge.
This header is suitable for applications requiring a reliable, polarized connection in a compact form factor. The right angle orientation allows for low-profile board-to-cable routing.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
| 10+ | $1.64 | $1.64 |
| 25+ | $1.57 | $1.57 |
| 100+ | $1.47 | $1.47 |
| 200+ | $1.33 | $1.33 |
| 600+ | $1.22 | $1.22 |
| 1,000+ | $1.08 | $1.08 |
| 2,600+ | $1.06 | $1.06 |
| 5,000+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions in a single row.
2.00mm (0.079 inches).
125VAC.
Through hole, right angle with kinked pin solder termination.
Yes, it is fully shrouded with four walls and includes a detent lock.
