| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

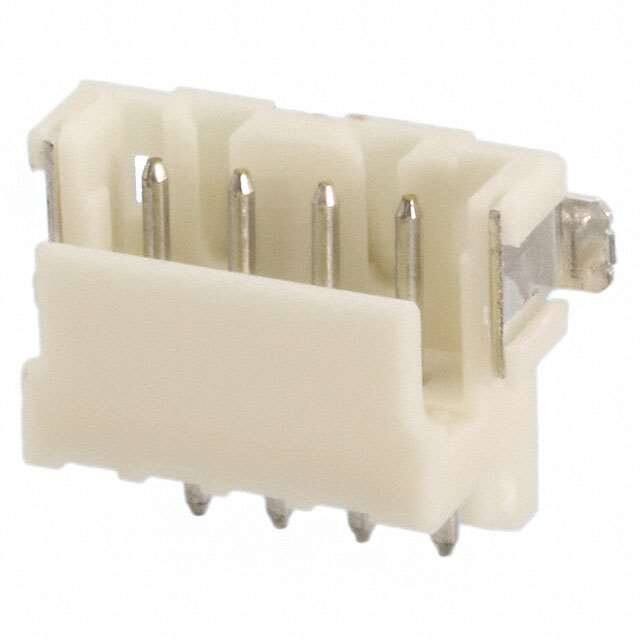

The TE Connectivity 1-292173-4 is a 4-position, single-row header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a detent lock for secure mating and includes board guide and solder retention features for reliable assembly.
The connector is surface mounted with a right-angle orientation and uses solder termination. Contacts are male pins made of brass with a tin finish, and the insulator is natural-colored polyamide (PA6T) glass-filled material with a UL94 V-0 flammability rating. The pitch is 2.00mm (0.079 inches) and the insulation height is 5.80mm (0.228 inches). Voltage rating is 125VAC.
4 positions, all loaded, in a single row.
2.00mm (0.079 inches).
125VAC.
Surface mount, right angle.
