| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,675 pcs
|
3675 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

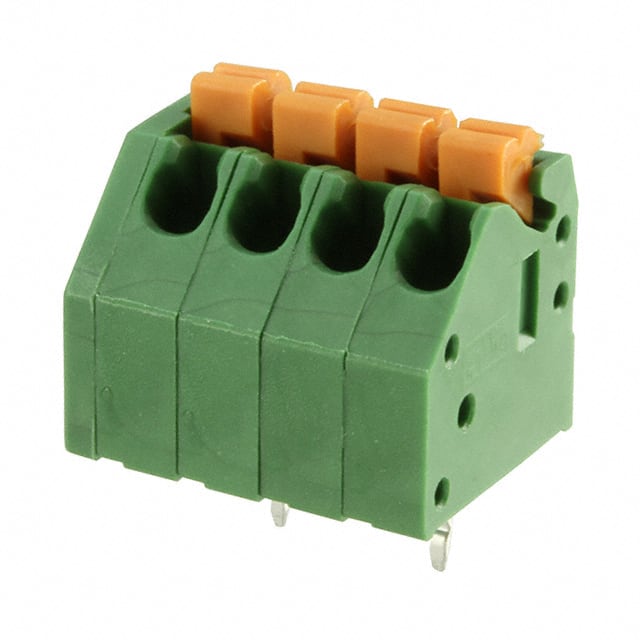

The TE Connectivity 1-2834011-4 is a 4-position wire to board terminal block designed for reliable PCB connections. It features a single level with 4 positions per level at a 3.50mm pitch, accepting wire gauges from 14 to 20 AWG. The screwless push-in spring termination allows for quick and tool-less wiring, reducing installation time.
Rated for 6A and 300V, this terminal block is suitable for low to moderate power applications. The through hole mounting with kinked pins provides secure mechanical retention on the PCB. The mating orientation is vertical with the board, making it ideal for top-entry wiring configurations.
The housing is green in color, and the part is listed as RoHS3 compliant, MSL 1 (unlimited), and REACH unaffected, though these compliance values are unverified. The lead spacing is 3.50mm, matching the pitch.
4 positions per level, 1 level.
3.50mm (0.138 inches).
6 A.
300 V.
Through hole with kinked pins.
14-20 AWG.
Screwless push-in spring (leg spring).
