| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

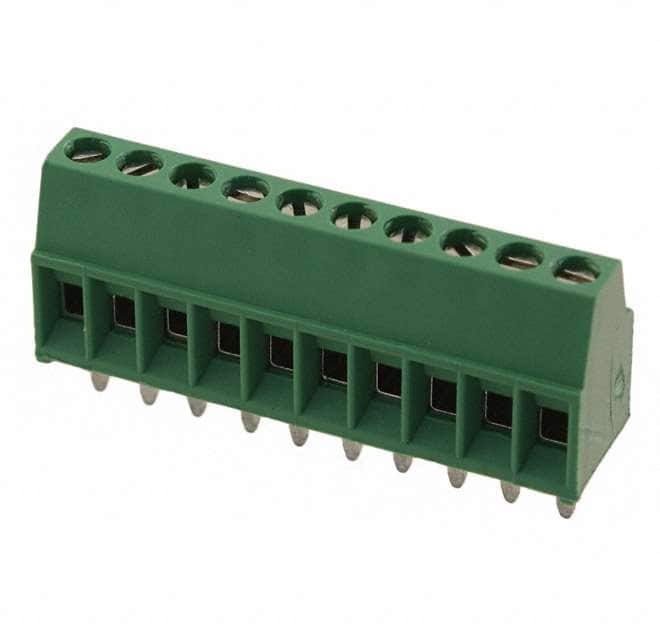

The TE Connectivity 1-282834-0 is a 10-position wire-to-board terminal block designed for reliable PCB connections. It features a 2.54mm (0.100in) pitch, allowing for compact board layouts while providing ample spacing for wiring.
Electrically, the terminal block is rated for 10A of current and 150V of voltage, making it suitable for low to moderate power applications. It accepts wire gauges from 16 to 30 AWG, accommodating a wide range of wire sizes.
Mechanically, the part uses a screw rising cage clamp termination method for secure wire retention. The mating orientation is horizontal with the board, and the housing is green in color. Through-hole mounting provides a robust mechanical attachment to the PCB.
This terminal block is commonly used in industrial control, automation, and power distribution systems where compact and reliable wire-to-board connections are required.
10 positions.
2.54mm (0.100in).
10A.
150V.
Through-hole.
16-30 AWG.
Screw - rising cage clamp.
