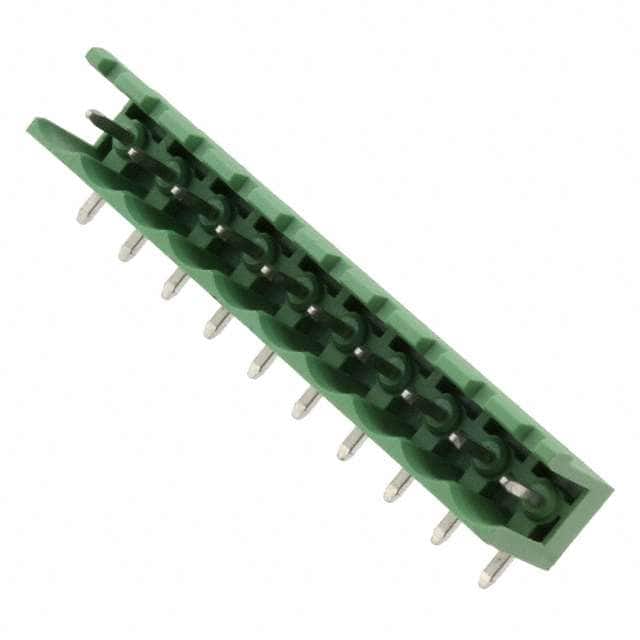

1-282812-0 TE Connectivity 1-282812-0 is a 10-position, 5.00mm pitch, right angle, through-hole terminal block header with shrouded male pins and green PA 6-6 housing.
Mfr Part #:

1-282812-0

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1-282812-0 is a 10-position, 5.00mm pitch, right angle, through-hole terminal block header with shrouded male pins and green PA 6-6 housing.
✓ Total Stock: 300 pcs

1-282812-0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1-282812-0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Current
Features
Header Orientation
Housing Material
Industrial Grade
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1-282812-0 Description

Short technical summary and product information.

The TE Connectivity 1-282812-0 is a 10-position terminal block header from the Buchanan series. It features a 5.00mm pitch and a right-angle orientation for space-constrained PCB layouts. The shrouded (2 side) design provides pin protection and alignment during mating.



Rated for 15A and 300V, this header uses tin-plated copper alloy contacts and a green PA 6-6 housing rated UL 94-V0. It supports side stacking (end-to-end stackable) without loss of centerline spacing, enabling multi-connector configurations.



Designed for through-hole soldering, the header accommodates PCB thicknesses of 1.6-2.4mm. The operating temperature range is -40°C to 110°C.

1-282812-0 Quick Information

Product Type: Terminal Block Header
Series: 282812
Canonical Name: TE Connectivity 1-282812-0 Header, Male Pins, Shrouded (2 Side), 10 Position, 5.00mm Pitch, Right Angle, Through Hole
Subcategory: Terminal Block Headers

1-282812-0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1-282812-0 Features

  • 10 positions with 5.00mm pitch spacing.
  • Right angle orientation for compact layouts.
  • Rated for 15A current and 300V voltage.
  • Green PA 6-6 housing, UL 94-V0 rated.
  • End-to-end stackable without pitch loss.

1-282812-0 Applications

  • Industrial control and automation systems.
  • Power distribution and signal wiring.
  • Building automation and HVAC equipment.
  • Panel and enclosure wiring applications.

1-282812-0 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1-282812-0 have?

It has 10 positions.

What is the pitch of this header?

The pitch is 5.00mm.

What is the current and voltage rating?

It is rated for 15A and 300V.

What mounting type does this header use?

Through hole mounting with solder termination.

What is the operating temperature range?

-40°C to 110°C.

Is this header stackable?

Yes, it supports side stacking (end-to-end stackable) without loss of centerline spacing.
