| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 9 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

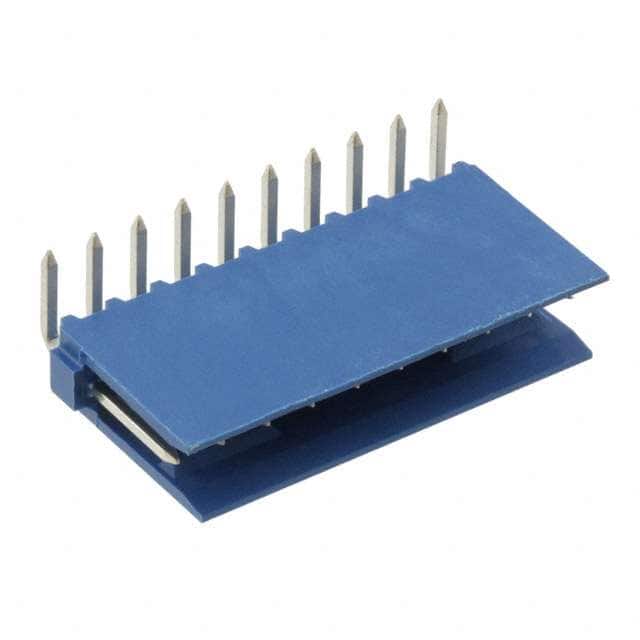

The TE Connectivity 1-281698-0 is a 10 position single row 2.54mm pitch right angle shrouded header designed for board to cable/wire applications. It features a 2-wall shrouded housing with friction lock for secure mating. The header uses through hole right angle mounting with solder termination.
The insulator is molded from blue thermoplastic rated UL94 V-0 for flammability. Contacts are phosphor bronze with tin plating and square shape. The insulation height is 5.08mm and contact length is 7.00mm. Operating temperature range is -40°C to 100°C.
This header is suitable for wire-to-board interconnect applications requiring a reliable locking mechanism. The 2.54mm pitch is compatible with standard ribbon cable and IDC connectors.
The pitch is 2.54mm (0.100").
It has 10 positions, all loaded.
Through hole, right angle.
-40°C to 100°C.
Phosphor bronze with tin plating.
Yes, it features a friction lock.
Blue thermoplastic rated UL94 V-0.
