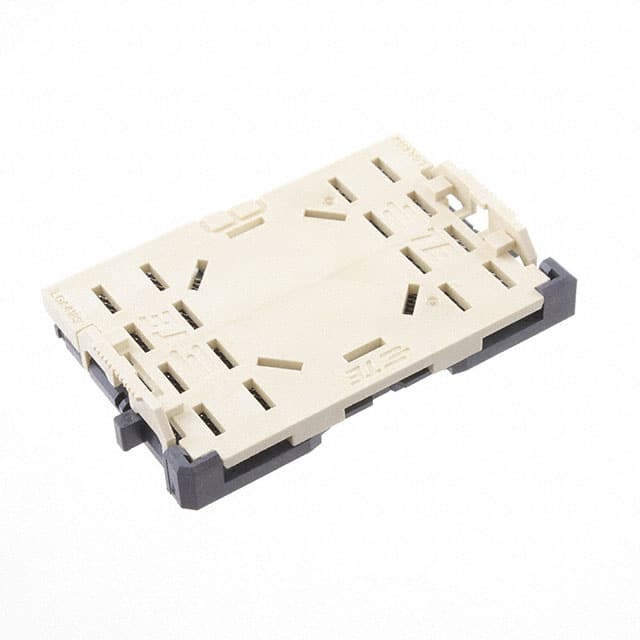

The 1-2324271-1 is a surface mount LGA 4189 socket segment from TE Connectivity. It features 2092 positions arranged in a 0.9906mm hexagonal pitch, designed for use with next-generation processors in server, data center, and high-performance computing applications. The socket has an open frame design with gold-plated copper alloy contacts (30µin thickness) and an LCP housing with thermoplastic cap.
Electrical specifications include a current rating of 0.5A per contact, insulation resistance of 800 megohms minimum at 500VDC, and contact normal force of 25gf at nominal deflection. The socket is rated for 30 durability cycles and operates over a temperature range of -25°C to 100°C. The two-piece housing design provides mechanical stability for repeated mating cycles.
This socket is a segment of the full 4189-pin LGA 4189 socket and is intended for prototyping or designs requiring a reduced pin count. It is supplied in tape and reel packaging (quantity not verified). Termination is solder, and the part is RoHS3 compliant (unverified).
2092 positions.
0.9906mm hexagonal pitch.
0.5 Amps per contact.
Surface mount.
Gold with 30µin thickness.
-25°C to 100°C.
