| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,800 pcs
|
10800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Current Rating (Amps) | |
| Current Rating - GND | |
| Current Rating - Signal | |
| Current Rating - VBUS | |
| Current Rating - VCONN | |
| Data Rate | |
| Features | |
| Gender | |
| Housing Material | |
| Lead Style | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power Delivery | |
| Shell Material | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| USB Standard | |
| Voltage | |
| Voltage Rating |

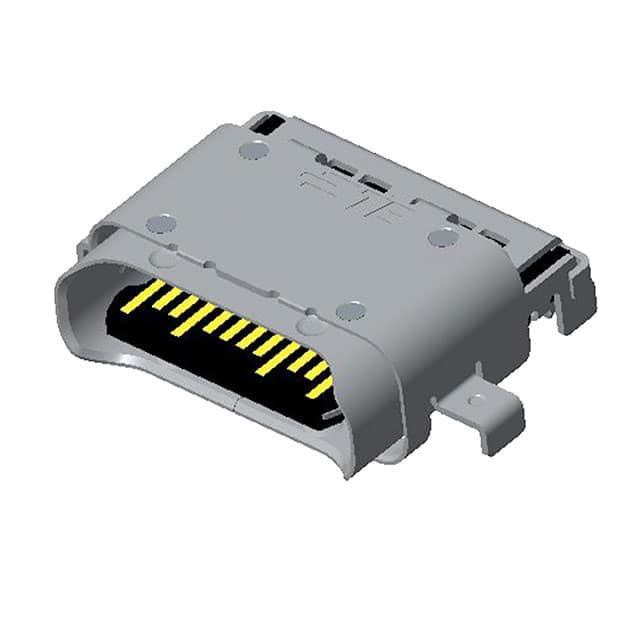

TE Connectivity's 1-2295018-2 is a USB Type-C receptacle designed for a variety of applications including handheld devices, PCs, industrial machinery, and data centers. This connector features a reversible mating interface and supports USB 3.1 Gen 2 with data rates up to 10 Gbps. It is rated for 20V and can deliver up to 100W of power.
The receptacle has 24 contacts and is rated for 5A on VBUS, 6.25A on GND, 1.25A on VCONN, and 0.25A on signal pins. It is designed for surface mount assembly with a horizontal, mid-mount, reverse orientation. The connector is rated for 10,000 mating cycles and operates over a temperature range of -30°C to 80°C.
The shell is made of stainless steel, the housing is thermoplastic UL94 V-0, and the contacts are copper alloy. The component includes a pick and place feature for automated assembly, making it suitable for high-volume production.
24 contacts.
5A.
20V.
Surface mount with horizontal, mid-mount, reverse orientation.
USB 3.1 Gen 2.
-30°C to 80°C.
10,000 cycles.
