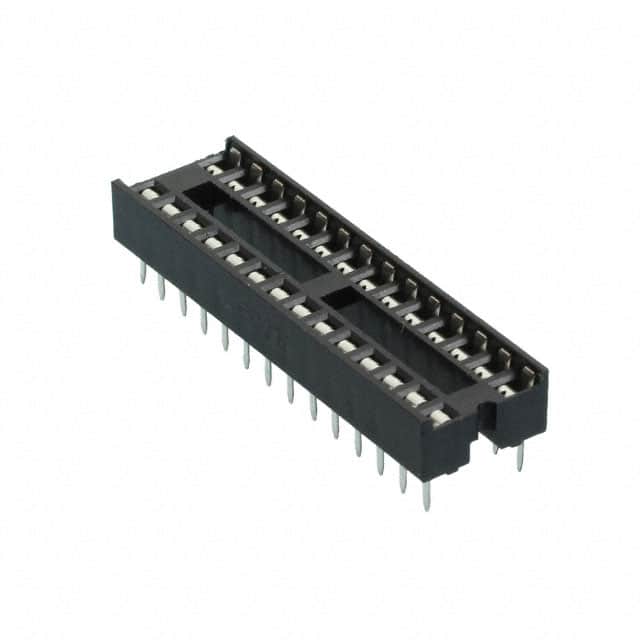

The TE Connectivity 1-2199298-9 is a 28-position DIP socket designed for through hole mounting. It features a 2.54mm pitch and 0.3" (7.62mm) row spacing, making it suitable for standard DIP IC packages. The socket uses dual leaf phosphor bronze contacts with a tin finish (60µin thickness) for reliable electrical connections.
The open frame housing is made of glass-filled PBT thermoplastic, rated for operating temperatures from -40°C to 105°C. Electrical ratings include a 1 Amp per pin current capacity, 20 milliohms maximum contact resistance, and 1000V AC minimum dielectric withstanding voltage. The socket accepts IC pins with diameters from 0.008" to 0.012" and requires a maximum insertion force of 300 grams with a minimum withdrawal force of 20 grams.
This socket is suitable for industrial controls, intelligent buildings, medical devices, military, and other embedded systems applications. The open frame design allows for airflow and inspection of solder joints.
The socket has 28 positions arranged in a 2 x 14 grid with 2 rows.
The pitch is 2.54mm (0.100") and the row spacing is 0.3" (7.62mm).
The contact rating is 1 Amp per pin.
The mounting type is through hole with solder termination.
The operating temperature range is -40°C to 105°C.
The contacts are made of phosphor bronze with a tin finish of 60µin (1.52µm) thickness.
The housing is made of glass-filled polybutylene terephthalate (PBT) thermoplastic and features an open frame design.
